Cable Management On The Saqqara Project - Vantrunk SW6 Speedway Containment

Cable Containment & Support

SW6 Speedway Extra Heavy Duty Cable Containment



Speedway SW6 cable ladder has been chosen for the Saquarra project in the Gulf of Suez. Vantrunk speedway SW6 stainless steel cable ladder for offshore use and Speedway SW6 Corten A, deep galvanized finish, cable ladder for onshore use.

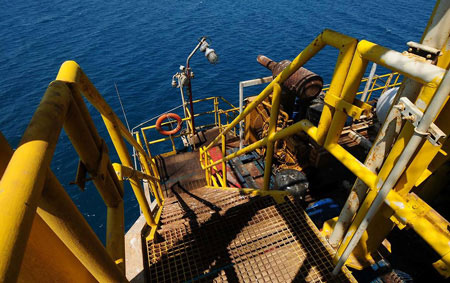

Saquarra Oil Field Gulf of Suez

The Saqqara project is operated through GUPCO, BP’s JV with the Egyptian General Petroleum Corporation. The project will produce from a 9-slot wellhead tower, and multi-phase fluids will be exported to a dedicated onshore separation and gas processing plant. First production is expected in early 2008.

Vantrunk Speedway 6 cable ladder is manufactured in 3m lengths as standard with 6m lengths supplied to order. The SW6 cable ladder is available in standard widths of 150mm, 300mm, 450mm, 600mm, 750mm, 900mm and 1050mm with a standard rung spacing of 300mm.

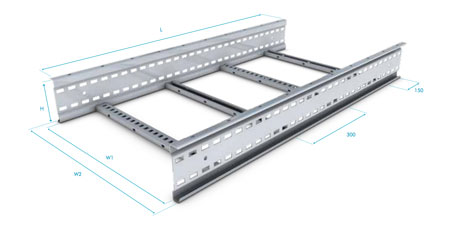

Vantrunk Speedway SW6 Extra Heavy Duty Cable Ladder

Vantrunk Speedway SW6 Extra Heavy Duty Cable Ladder
Part No. No. of Rungs Dimensions Weight
W W1 L H
SW6/SL3/150/* 10 150mm 200mm 3000mm 150mm 21.63kg
SW6/SL3/300/* 10 300mm 350mm 23.79kg
SW6/SL3/450/* 10 450mm 500mm 25.95kg
SW6/SL3/600/* 10 600mm 650mm 28.11kg
SW6/SL3/750/* 10 750mm 800mm 30.28kg
SW6/SL3/900/* 10 900mm 950mm 32.44kg
SW6/SL3/1050/* 10 1050mm 1100mm 34.60kg

* Select a Finish & Material



Vantrunk Speedway SW6 Cable Ladder Finishes & Materials

GY - Hot Dipped Galvanised Vantrunk Extreme Steel

SS - Marine Grade Stainless Steel

GX - Deep Galvanised Vantrunk Silicon Rich Structural Steel

GK - Hot Dipped Galvanised Vantrunk Silicon Rich Structural Steel
