Ritherdon RB800 Electrical Enclosure Cabinets For Automatic Number Plate Recognition (ANPR) Cameras

By Chris Dodds on 11th July, 2012

Follow @ThorneanDerrick

Power Distribution & Feeder Pillars

Ritherdon RB800 External Electrical Enclosures

Ritherdon RB Range Of 304 Grade Stainless Steel Cabinets



Ritherdon RB800 cabinet enclosures have been selected by PIPS Technology to provide housing to automatic number plate recognition (ANPR) cameras. Specialist Ritherdon electrical cabinets are available with plug points and consumer units which are used to house several police ANPR installations across the UK.

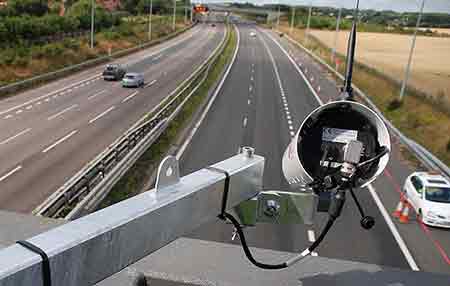

Pictured: PIPS Technology Automatic Number Plate Recognition Camera

The RB range of cabinets are highly flexible with a modular design meaning they are suitable as enclosures for protecting electrical and/or electronic equipment in the most inhospitable external environments. Ritherdon have developed a new hinge system which meets all the requirements needed by the highway industry - easy removal of the door, 180º opening and extra strength.

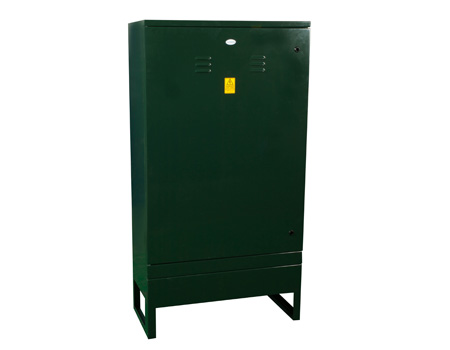

Pictured: Ritherdon RB800 External Electrical Enclosure

Ritherdon RB800 stainless steel cabinets can be supplied with a detachable plinth which is installed in the ground before fastening the cabinet down. Alternatively, the cabinets can be fixed down to any hard, flat surface, without the plinth.

Ritherdon RB Range Of External Electrical Enclosure Dimensions

Enclosure	Width	Depth	Max. Height	Backboard	No. of Doors
Ritherdon RB300 (wall mounted)	300mm	150mm	342mm	250mm x 210mm	Single
Ritherdon RB460	460mm	260mm	1125mm*	930mm x 405mm	Single​
Ritherdon RB600	600mm	330mm	1125mm*	930 x 545	Single​
Ritherdon RB800	800mm	380mm	1125mm*	930mm x 745mm	Single​
Ritherdon RB1000	1000mm	380mm	1125mm*	930mm x 945mm	Single​
Ritherdon RB1250	1250mm	430mm	1125mm*	930mm x 1195mm	Double+
Ritherdon RB1550	1550mm	430mm	1125mm*	930mm x 1495mm	Double+

* 2° slope to back of cabinet; excluding plinth height of 300 mm

+ Doors seal against each other without the need for a vertical bar, therefore saving space
