Ritherdon Stainless Steel Feeder Pillars For Tram Systems

By Chris Dodds on 9th July, 2014

Follow us on LinkedIn

Ritherdon Stainless Steel Feeder Pillars For Tram Systems

Feeder Pillars

Ritherdon feeder pillars, made from 304 grade stainless steel, are used to provide low voltage power control, monitoring and distribution in the rail and tram system.

Ritherdon feeder pillars are designed with an integral root, body and detachable door for electricalFeeder Pillars maintenance - 2mm thick stainless steel feeder pillars provide high levels of strength, durability and corrosion resistance.

Underground cable ducting is accessible via the front section of the feeder pillar and duct apertures in the sides and back of the root. An earth cable allows for safe bonding of the door to the feeder pillar body with two M6 studs complete with nuts and washers.

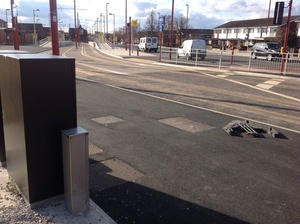

Pictured : Ritherdon Feeder Pillars in service at the Manchester Metrolink providing low voltage power supply to the tram system.

Ritherdon feeder pillars have been installed by Siemens at Manchester Metrolink

Link-Up

T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).

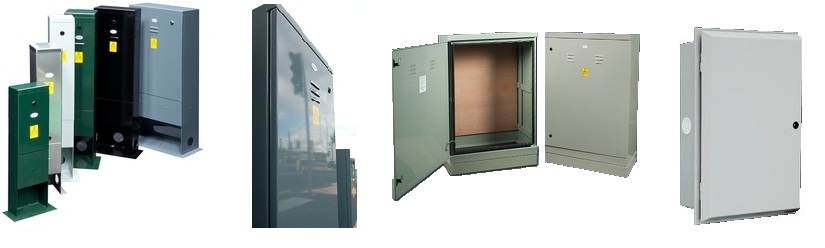

Pictured : Ritherdon Stainless Steel Feeder Pillars, Cabinets, Electrical Enclosure Boxes & Meter Boxes

Ritherdon Feeder Pillars Enclosure Boxes Meter Boxes

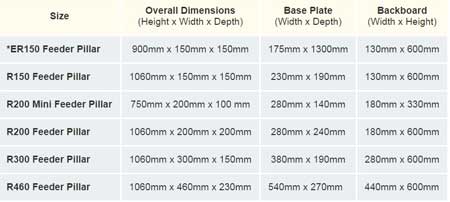

Pictured : Stainless Steel Feeder Pillars. Ritherdon range from 150mm to 460 mm wide, with integral roots and lift-off doors and with either a high quality powder coated or natural finish as standard.

Colour Options

  • Natural
  • Dark Grey
  • Light Grey
  • Dark Green
  • Black

Stainless Steel Feeder Pillars



Ritherdon Stainless Steel Feeder Pillars - Overview

Feeder Pillars




Category:  Rail
