Ritherdon R620 Electrical Enclosure Cabinets for Vysionics Average Speed Enforcement Systems

By Chris Dodds on 11th July, 2012

Follow @ThorneanDerrick



Power Distribution & Feeder Pillars

Ritherdon R620 Stainless Steel Cabinets



Ritherdon R620 service cabinets have been selected by Vysionics ITS to provide housing to their Average Speed Enforcement Systems (ASE). Customised stainless steel service cabinets are housing Vysionics SPECS3 POD Average Speed Enforcement system.

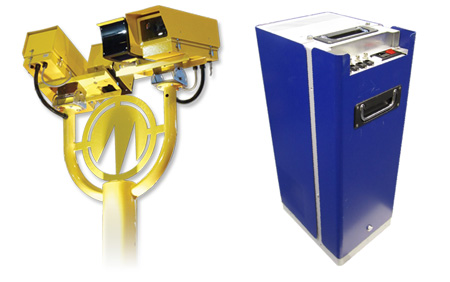

Pictured: Vysionics Average Speed Enforcement Systems SPECS3 POD

Ritherdon R620 enclosure cabinets offer a compact and attractive electrical enclosure ideal for urban and rural road networks.

Ritherdon R620 cabinet stands 1m above ground level when installed and can be bolted down onto a suitable surface, or attached to a plinth which can be ordered separately. A hinged door with two locks is sealed with a neoprene gasket. Access for cable ducting is provided through the lower front section of the cabinet or root. An earth cable is provided for bonding the doors to the body, with two studs complete with nuts and washers.

The complete R620 enclosure unit is manufactured from 2 mm thick stainless steel and supplied with a full width external grade plywood backboard for the fitting of electrical termination equipment.

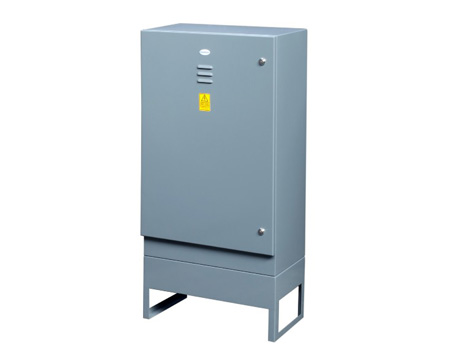

Pictured: Ritherdon R620 Stainless Steel Enclosure

Ritherdon R620 Service Cabinets Technical Data

Width	Depth	Height	Backboard
620mm	300mm	1000mm	600mm x 860mm



*NB The original R range of Ritherdon cabinets has been replaced by the RB range with its associated mechanical and aesthetic improvements. Ritherdon recommends looking at the RB600 or RB800 enclosures first.
