Prysmian ZHMPJ Low Voltage Afumex Low Smoke Zero Halogen Straight Cable Joints for Armoured SWA Cables




Prysmian ZHMPJ low voltage resin straight cable joints are suitable for LV jointing armoured SWA XLPE and polymeric cables with copper conductors from 1.5sqmm-400sqmm. The ZHMPJ cable joints are uitable for cable jointing low smoke zero halogen power cables.

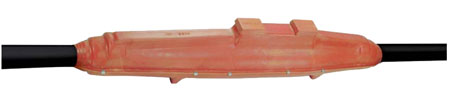

Prysmian ZHMPJ Low Voltage Cable Join Kits

Prysmian ZHMBJ Low Voltage LSOH Cable Joint Kits Features

  • Low Hazard Isocynate free JEM resin
  • Rigid glass reinforced phenolic joint shells which are both fi re retardant and LSOH
  • Slim-line design for use with compression connectors
  • Tested and approved to BS EN 50393 & ENA ER C81
  • Tests on complete joints to BS 6724 (using IEC 1034 methods) give smoke emission values A0 significantly less than the permitted maximum of 1.5
  • Includes constant force spring Armour Bonds

Prysmian ZHMPJ LSOH Cable Joints

Prysmian ZHMPJ LV Afumex Low Smoke Zero Halogen Cable Joints Data

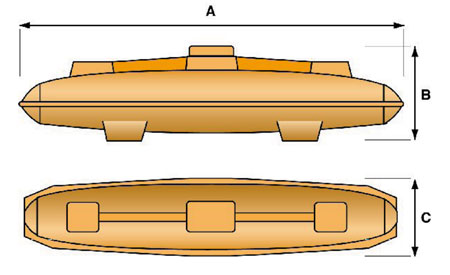

Joint Reference Shell Dimensions Nominal Area Of Conductor
A B C 2 Core Max 3 Core Max 4 Core Max

Prysmian ZHMPJ2

300mm 85mm 70mm 25mm² 16mm² 10mm²

Prysmian ZHMPJ3

405mm 100mm 80mm

50mm²

25mm²

16mm²

Prysmian ZHMPJ4

430mm 110mm 90mm

95mm²

35mm²

35mm²

Prysmian ZHMPJ5

560mm 160mm 130mm 185mm²

95mm²

95mm²

Prysmian ZHMPJ6

740mm 180mm 145mm

300mm²

185mm²

185mm²

Prysmian ZHMPJ7

870mm 190mm 145mm N/A

300mm²

300mm²

Prysmian ZHMPJ8

1015mm 205mm 180mm N/A N/A

400mm²
