Prysmian ZHMB Low Voltage Afumex Low Smoke Zero Halogen Branch Cable Joints for Armoured SWA Cables

By Chris Dodds on 20th September, 2012

Follow us on LinkedIn

Prysmian ZHMB Low Voltage Afumex Low Smoke Zero Halogen Branch Cable Joints for Armoured SWA Cables

Low Voltage LV Resin Cable Joints

Prysmian ZHMB Low Voltage Afumex Low Smoke Zero Halogen Branch Cable Joint Kits for Armoured SWA Cables



Prysmian ZHMB low voltage branch resin cable joints are suitable for LV LSOH/LSF LV cables with copper conductors from 10-50sqmm.

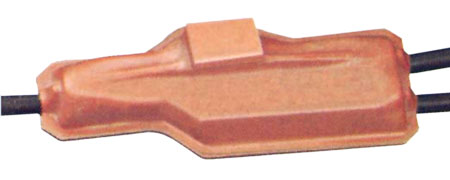

Prysmian ZHMB Cable Joint Kit

Prysmian ZHMB Low Voltage LSOH Cable Joint Kits Features

  • Low Hazard Isocynate free JEM resin
  • Rigid glass reinforced phenolic joint shells which are both fi re retardant and LSOH
  • Designed for use with compression and mechanical connectors
  • Low Voltage Branch Joints for 600/1000 Volt polymeric insulated copper conductors, SWA cables to BS6724 and IEC 60502-1 (halogen free)
  • Tested and approved to BS EN 50393 & ENA ER C81
  • Tests on complete joints to BS 6724 (using IEC 1034 methods) give smoke emission values A0 significantly less than the permitted maximum of 1.5
  • Includes constant force spring Armour Bonds

Prysmian ZHMB Low Smoke Zero Halogen Cable Joint Kits

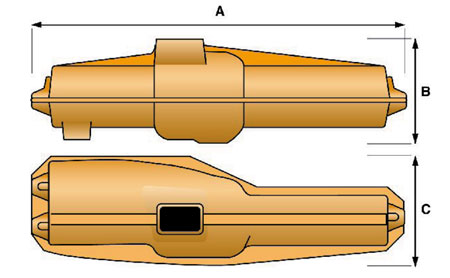

Prysmian ZHMB LV Afumex Low Smoke Zero Halogen Cable Joints Data
Joint Reference Shell Dimensions Nominal Area Of Conductor
A B C 2 Core Max 3 Core Max 4 Core Max

Prysmian ZHMB1

420mm 150mm 150mm 35mm² 25mm² 10mm²

Prysmian ZHMB2

520mm 195mm 180mm

120mm²

95mm² 50mm²
