Low Voltage LV Resin Cable Joints

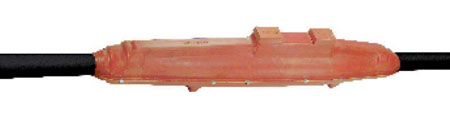

Prysmian FRZHMPJ LV FP Fire Performance FP Straight Cable Joint Kits



Prysmian low voltage FP fire performance service cable joints are suitable for LV jointing armoured SWA XLPE and polymeric cables with copper conductors from 4sqmm-400sqmm. Prysmian resin straight cable joints feature low hazard isocynate free JEM cable jointing resin - cable joint shells are designed for use with crimp connectors. Prysmian low voltage resin straight joints for 600/1000 volt armoured SWA polymeric insulated copper conductors.

Prysmian JEM resin joints exhibit excellent adhesion to XLPE, MDPE, PVC and lead sheathed covered cables. JEM resin does not cause health concerns to low voltage cable jointers and is not classified as irritating to the skin or eyes. Prysmian FRZHMPJ straight cable joints suit single and multi-core (2, 3, 4 core) XLPE SWA cables including 1.5sqmm, 2.5sqmm, 4sqmm, 6sqmm, 10sqmm, 16sqmm, 25sqmm, 35sqmm, 50sqmm, 70sqmm, 95sqmm, 120sqmm, 185sqmm, 240sqmm, 300sqmm and 400sqmm.

Prysmian FRZHMPJ Low Voltage FP Cable Joint Kits Features

• Low Hazard Isocynate free JEM resin
• Rigid glass reinforced phenolic joint shells which are both fi re retardant and LSOH
• Slim-line design for use with compression connectors
• Meet the Fire resistance requirements of BS6387 categories C, W & Z
• Tested and approved to BS EN 50393 & ENA ER C81
•  Includes constant force spring Armour Bonds

Prysmian FRZHMPJ LV Fire Performance Cable Joints Data

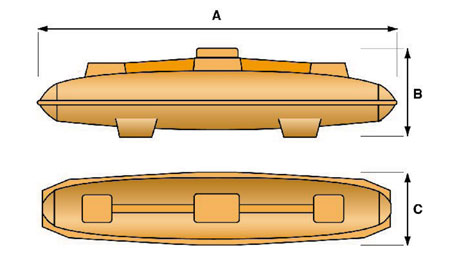

Joint Reference	Dimensions			Nominal Area Of Conductor
	A	B	C	2 Core Max	3 Core Max	4 Core Max
Prysmian FRZHMPJ2	300mm	85mm	70mm	25mm²	10mm²	10mm²
Prysmian FRZHMPJ3	405mm	100mm	80mm	50mm²	25mm²	16mm²
Prysmian FRZHMPJ4	430mm	100mm	90mm	95mm²	35mm²	35mm²
Prysmian FRZHMPJ5	560mm	160mm	130mm	185mm²	95mm²	95mm²
Prysmian FRZHMPJ6	740mm	180mm	145mm	300mm²	185mm²	185mm²
Prysmian FRZHMPJ7	870mm	190mm	145mm	N/A	300mm²	300mm²
Prysmian FRZHMPJ8	1015mm	205mm	180mm	N/A	N/A	400mm²
