Pfisterer Connex Substation Cable Terminations (33kV EPR XLPE Single Core 300sqmm, 400sqmm, 500sqmm)

By Chris Dodds on 18th March, 2016

Follow @ThorneanDerrick

Image: Remus Bidireac - 11/33kV Cable Jointer at Schneider Electric

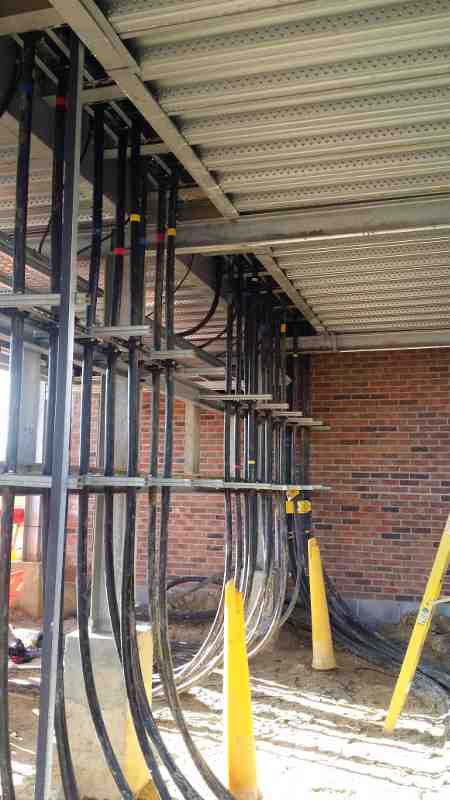

Pictured: Pfisterer Connex Substation Cable Terminations (33kV EPR XLPE Single Core 300sqmm, 400sqmm, 500sqmm)

Special thanks to Martin Winterburn and Scott Crowley.

Outgoing circuits are single cable/phase. Incoming cable feeders are multiple cable/phase, 2 each from 60MVA transformers 3 per phase from 90MVA transformer. All rated 33kV - current rating is circuit/cable dependant as different size and construction cables used.
