Pfisterer Connex 6S Inner Cone Plugs Terminating 300kV Nexans Cables Into GIS

By Chris Dodds on 25th February, 2016

Follow @ThorneanDerrick

• Cable : Nexans USA (XLPE 300kV)
• Cable Termination : Pfisterer Connex
• Cable Jointer : Andy O'Malley (Allteck Power Line Contractors)

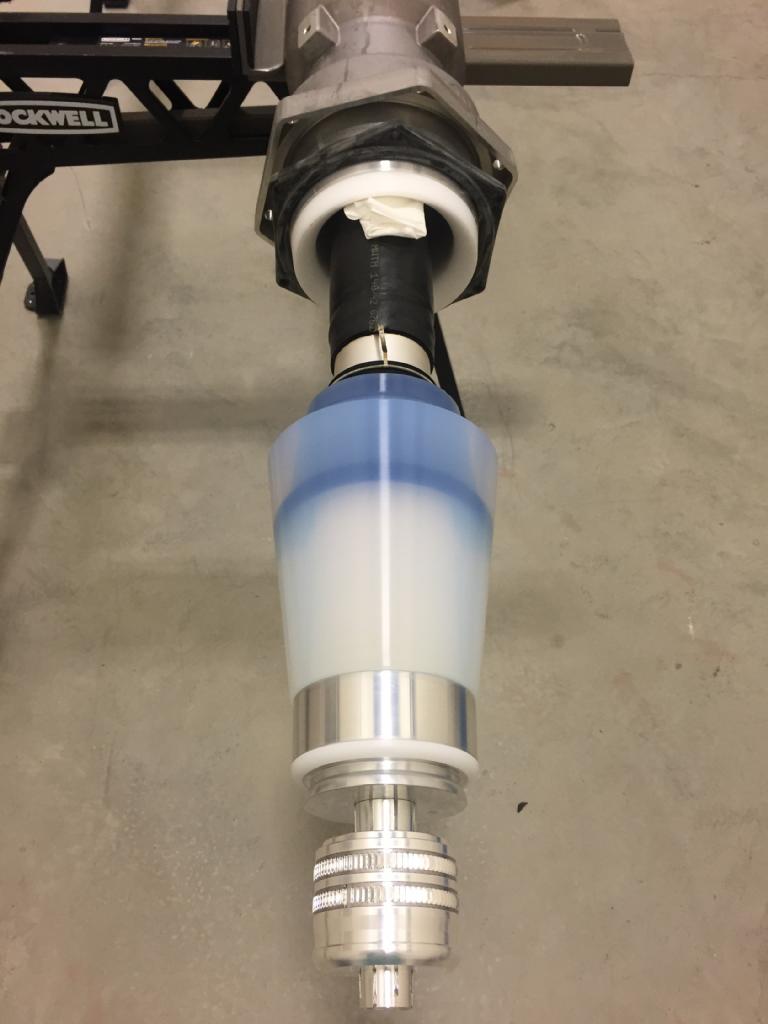

Nexans 300kV cable (220kV circuit voltage) is shown prepared for termination using Pfisterer Connex 6S Plugs (245kV). The HV circuit is terminated into GIS (Gas Insulated Switchgear) using Pfisterer Connex.

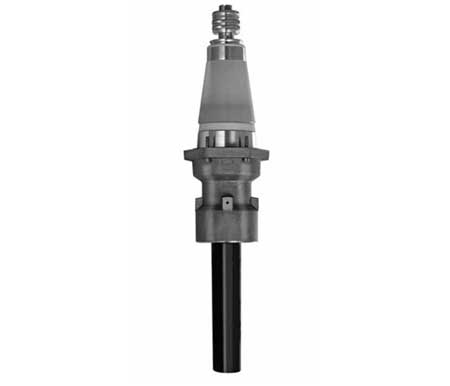

Pfisterer Connex medium and high voltage cable plug termination system is specified on global power projects for use in high load ring main units, circuit breaker switchgear, high voltage motors, transformers, capacitors, transducers and cable joint boxes.

T&D are Main Distributors & Stockists for the Pfisterer Medium Voltage Power Products including Connex Plugs, Cable Jointing Tools, Sicon Connectors, Surge Arresters and Electrical Safety Equipment.

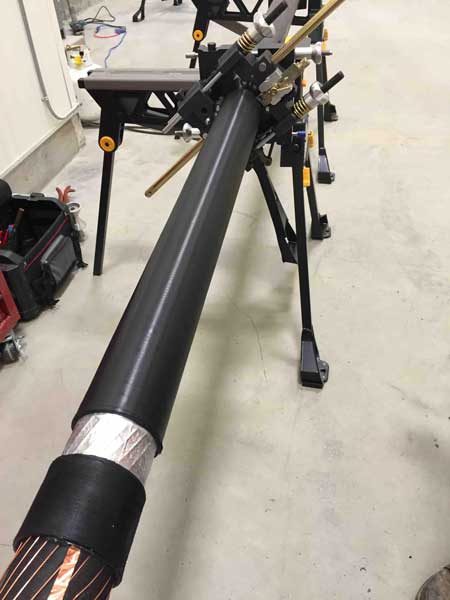

Image : Goodbye Glass

Alroc AMF5 55-160 tool removes the need for HV jointers to "glass" the outer conductive sheaths as the highly precision engineered cable jointing tool provides accurate stripping of HV and EHV cables in a motor controlled rather than manual process.

• Safety Rules OK!

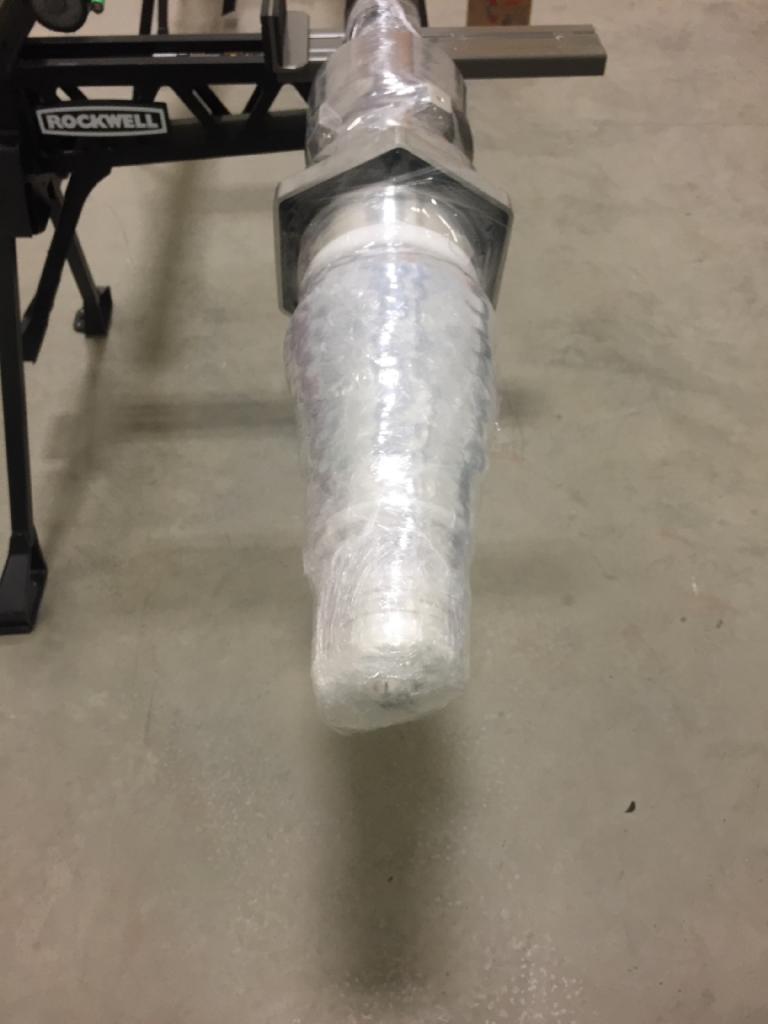

Pfisterer Connex 6S ready to plug in - the cable termination end is carefully protected and covered. This cable is situated inside a temperature controlled room and is "red-taped" to prevent unplanned entry.



"Great Safety is Great Business"

High voltage is high risk therefore worker safety is paramount at Allteck. Actually, it's more than that - it is their number 1 core value.

According to OSHA, typical occupational hazards include :

• High voltage cable or power line contact
• Working at dangerous height
• Working in confined spaces
• Challenging weather conditions and terrain - urban and rural work locations
• Vehicle traffic

Correct PPE and fall arrest equipment are minimum safety requirements for the Lineman's body. Most important is the "safety mindset" of the company - Allteck have a proud and proven track record in implementing the highest levels of safety standards.

Safety is at the heart of their company culture and reputation.



• Further reading

Pfisterer Connex Plugs Terminating 33kV XLPE Cables Into Toshiba GIS Shunt Reactor

Pfisterer Connex Inner Cone Plugs Terminating 33kV Cable Into Toshiba GIS Transformer

4 Core Waveform LV Cable Terminations Into Schneider Feeder Pillar
