Pfisterer Connex Inner Cone Plugs Terminating 33kV Cable Into Toshiba GIS Transformer

By Chris Dodds on 10th December, 2015

Follow @ThorneanDerrick

Image: John Penny (Cable Jointer / Director at Cabletec Services)

John Penny is an HV cable jointer and co-owner of Cabletec Services with over 21 years experience in the LV-HV power industry.

Working primarily within SPEN networks both North and South - holds SPEN and SSE authorisations from LV up to 400kV, including 132kV certifications.

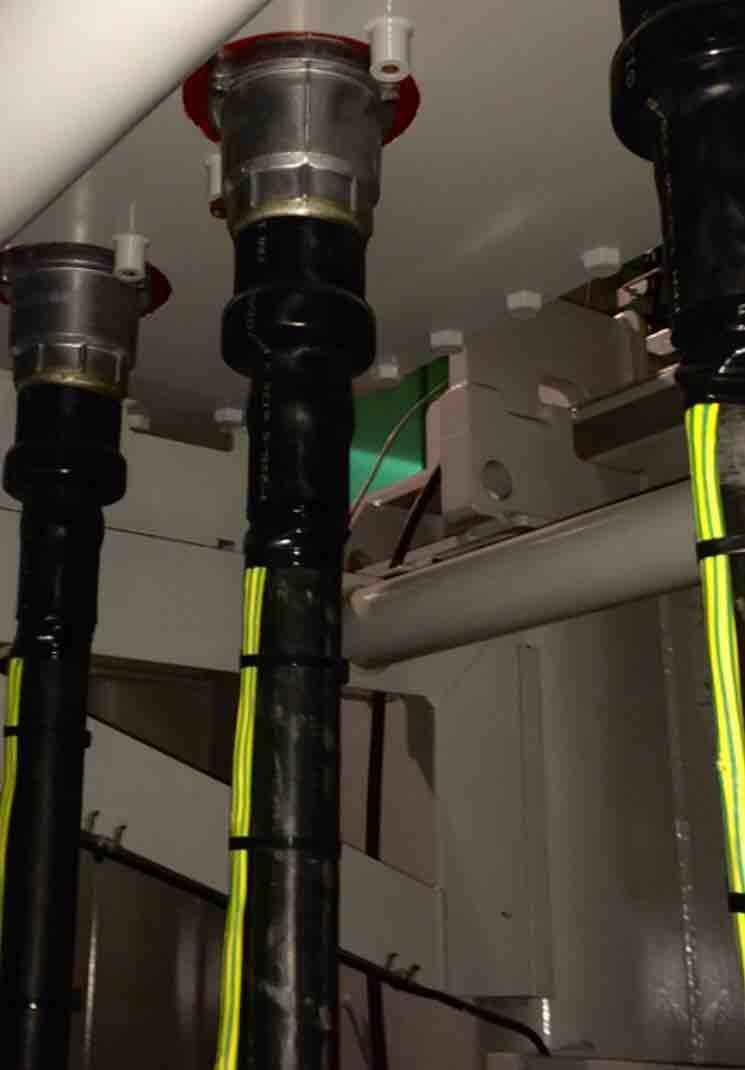

Pictured: Pfisterer Connex Inner Cone Plugs Terminating 33kV Cable Into Toshiba GIS Transformer.

Pfisterer Connex size 3 inner cone plug separable connectors are suitable for terminating high voltage single core cables with copper wire screens.
