Pfisterer Connex Size 4 Terminations Connecting 66kV Gas Cable

By Chris Dodds on 10th February, 2017

Follow us on LinkedIn

Pfisterer Connex Size 4 Terminations Connecting 66kV Gas Cable

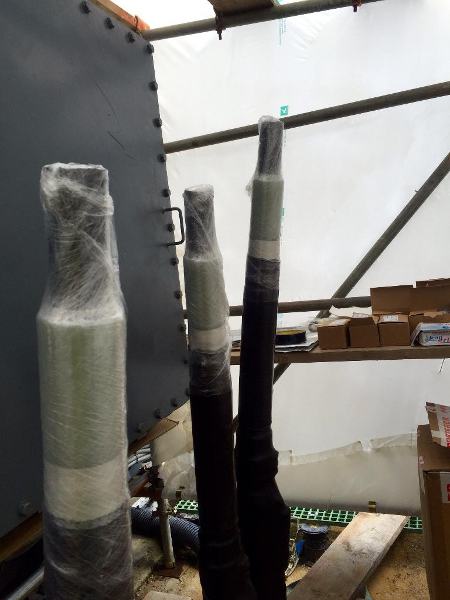

Pictured: Pfisterer Connex Size 4 Cable Terminations Connecting 66kV Gas Cable

Image: Dean Wilson - Owner Director at D.C.Cable Jointing Ltd

T&D are Main Distributors & Stockists for the Pfisterer range of Medium Voltage Power Products including Connex Plugs, Cable Jointing Tools, Sicon Connectors, Surge Arresters and Electrical Safety Equipment.

Pfisterer Connex

Pfisterer Connex Size 4s Terminations Connecting 66kV Gas Cable

Pfisterer Connex Inner Cone Plug Terminations

The Pfisterer MV Connex range is ideal for use in high load ring main units, circuit breaker switchgear, high voltage motors, transformers, capacitors, transducers and cable joint boxes. Pfisterer connectors on the equipment side are designed to meet EN 50180 (bushings for liquid filled transformers up to 52kV), EN 50181 (plug-in type bushings up to 36kV for equipment other than filled transformers) and DIN 47637 (separable accessories for power cable for bushing with inside cone).

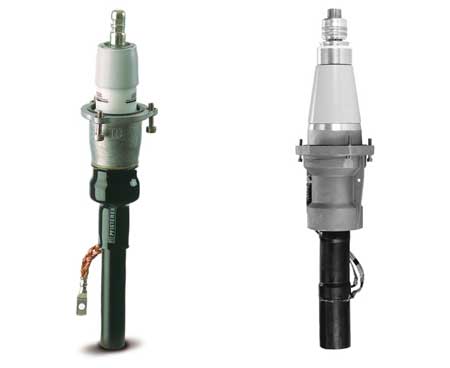

Pfisterer Connex Inner Cone Plug Terminations

Pfisterer Tools - Pfisterer Connex Plugs (33kV Separable Connectors Size 3) - careful and professional MV cable preparation using approved cable jointing tools is essential to acheive a reliable installation.
