Heavy Duty Cable Grips - Slingco R Type Rotating Multi-Weave Cable Grip

Heavy Duty Cable Grips

Slingco R Type Rotating Multi-Weave Cable Grip



Like the MU cable grip, the Slingco R Type rotating eye cable grip has a triple weave construction and is colour coded for ease of identification.

In addition, the cable grip's steel forged revolving head is ideal for connecting to cable pulling swivels and shackles.

Note - Slingco R Type Rotating Eye Cable Grip does not revolve under load.

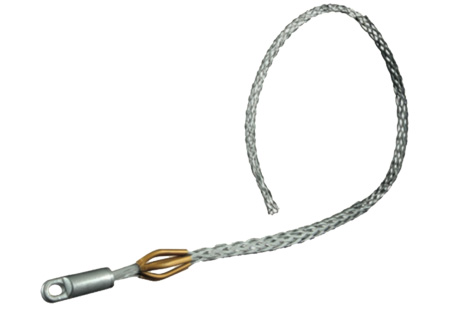

Slingco R Type Rotating Multi-Weave Cable Grip

Slingco R Type Rotating Multi-Weave Cable Grip Specifications
Slingco Part No. Colour Code Range Lattice Length Approx Break Load
ZCS2177 Dark Green 6mm - 12mm 787mm 3170kg
ZCS2178 Brown 12mm - 19mm 1143mm 4760kg
ZCS2179 Light Blue 19mm - 25mm 1092mm 6395kg
ZCS2180 Gold 25mm - 32mm 1651mm 11340kg
ZCS2181 Black 32mm - 38mm 1499mm 14065kg
ZCS2182 Red 38mm - 44mm 2083mm 14065kg
ZCS2183 Dark Blue 44mm - 57mm 2083mm 19510kg
ZCS2779 Yellow 50mm - 63mm 1829mm 19510kg
ZCS2780 Orange 63mm - 76mm 1829mm 19510kg
ZCS2781 Aluminium 76mm - 89mm 1880mm 19510kg
ZCS2782 Light Green 89mm - 102mm 1930mm 19510kg



Slingco R Type Cable Grips
