Slingco Cable Socks - MU Type

Cable Jointing - LV HV Cables



Triple weave construction Slingco MU type cable sock is ideal for heavy cable loads. The MU type cable socks are colour coded for ease of identification, primarily for pulling aluminium conductor.

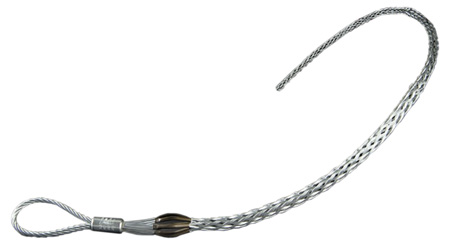

Pictured: Slingco MU Type Cable Socks



Slingco MU Multi Weave Cable Pulling Socks Specifications

Part No	Colour	Size Range	Lattice Length	Approx Breaking Strength
Slingco ZCS1710	Dark Green	6mm - 12mm	787mm	3,170kg
Slingco ZCS1711	Brown	12mm - 19mm	1143mm	4,760kg
Slingco ZCS1712	Light Blue	19mm - 25mm	1092mm	6,395
Slingco ZCS1713	Gold	25mm - 32mm	1651mm	11,340
Slingco ZCS1714	Black	32mm - 38mm	1499mm	14,065
Slingco ZCS1715	Red	38mm - 44mm	2083mm	14,065
Slingco ZCS1716	Dark Blue	44mm - 57mm	2083mm	22,230
Slingco ZCS1750	Yellow	50mm - 63mm	1829mm	22,230
Slingco ZCS1751	Orange	63mm - 76mm	1829mm	22,230
Slingco ZCS1752	Aluminium	76mm - 89mm	1880mm	22,230
Slingco ZCS1753	Light Green	89mm - 102mm	1930mm	22,230



T&D distribute the most extensive range of Cable Socks to enable the safe support and efficient pulling in and laying of low and high voltage cables into cable duct, cable trench or conduit.

Cable Sock Applications:

• Overhead house service cables
• Portable tool supply cables
• Portable compressed air lines
• Conduit risers
• Hydraulic hoses
• Cable strain relief
• Oil support cables
• Marine cables
• Guy rope adjusters
• Fibre optic cable pulling
• Installing transmission cables
