Slingco Marine Cable Grips & Heavy Duty Hose Restraint Grips

Slingco CableGrip

Slingco Hose Restraints and Marine Cable Grips



Slingco manufactures extremely heavy duty grips for high pressure hose restraints or large underwater cable pulls, and various uses in oil and gas markets.

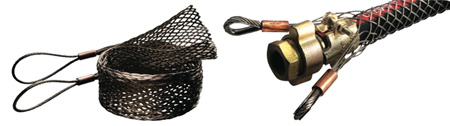

Pictured: Slingco Marine Cable Grips & Heavy Duty Hose Restraint Grips

Slingco Hose Restraints and Marine Cable Grips

Slingco Marine Cable Grips are heavy duty  speciality cable grips suitable for large underwater pulls, plus other applications in the oil and gas industries.

The cable grips are made of a galvanised steel construction for heavy duty large diameter pulls.

Available in single eye, double eye lace closing and double eye with sizing ranging from 4 inches to over 20 inches.

Slingco Marine Cable Grips Specifications
Slingco Part No. Range Lattice Length Approx Break Load
Single Eye
Slingco ZCS3525 102mm - 127mm 2360mm 45,370kg
Slingco ZCS3526 127mm - 152mm 2360mm 47,640kg
Slingco ZCS3527 152mm - 203mm 2360mm 50,815kg
Slingco ZCS3528 203mm - 255mm 2360mm 62,600kg
Slingco ZCS3529 255mm - 305mm 2360mm 62,600kg
Slingco ZCS3530 305mm - 355mm 2360mm 62,600kg+
Slingco ZCS3531 355mm - 406mm 2950mm 62,600kg​+
Slingco ZCS3532 406mm - 457mm 3290mm 62,600​kg+
Slingco ZCS3533 457mm - 508mm 3940mm 62,600​kg+
Slingco ZCS3534 508mm - 584mm 4920mm 62,600​kg+
Double Eye
Slingco ZCS3535 102mm - 127mm 2360mm 55,800kg
Slingco ZCS3536 127mm - 152mm 2360mm 55,800kg
Slingco ZCS3537 152mm - 203mm 2360mm 57,850kg
Slingco ZCS3538 203mm - 255mm 2360mm 71,000kg
Slingco ZCS3539 255mm - 305mm 2360mm 71,000kg
Slingco ZCS3540 305mm - 355mm 2360mm 71,000kg
Slingco ZCS3541 355mm - 406mm 2950mm 71,000kg+
Slingco ZCS3542 406mm - 457mm 3290mm 71,000kg​+
Slingco ZCS3543 457mm - 508mm 3940mm 71,000kg​+
Slingco ZCS3544 508mm - 584mm 4920mm 71,000kg​+
Double Eye Lace Up
Slingco ZCS3545 102mm - 127mm 2360mm 55,800kg
Slingco ZCS3546 127mm - 152mm 2360mm 55,800kg
Slingco ZCS3547 152mm - 203mm 2360mm 57,850kg
Slingco ZCS3548 203mm - 255mm 2360mm 71,000kg
Slingco ZCS3549 255mm - 305mm 2360mm 71,000kg
Slingco ZCS3550 305mm - 355mm 2360mm 71,000kg
Slingco ZCS3551 355mm - 406mm 2950mm 71,000kg​+
Slingco ZCS3552 406mm - 457mm 3290mm 71,000kg​+
Slingco ZCS3553 457mm - 508mm 3940mm 71,000kg​+
Slingco ZCS3554 508mm - 584mm 4920mm 71,000kg​+

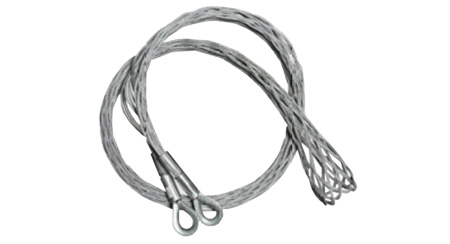

Pictured: Slingco Heavy Duty Hose Restraint Grips

Slingco Heavy Duty Hose Restraint Grips

Slingco Heavy Duty Hose Restraint Grips are a safety restraining system designed to prevent whipping in the event of a pressurised hose becoming detached from its fitting.

Slingco Heavy Duty Hose Restraint Grips Specifications
Slingco Part No. Range Lattice Length Lattice Weave Approx Break Load
Double Thimble Eye - Galvanised Steel
Slingco ZCS5363 Thimble Eye 25mm - 38mm 660mm Double 4,911kg
Slingco ZCS5364 Thimble Eye 38mm - 63mm 1016mm Double 8,928kg
Slingco ZCS5365 Thimble Eye 63mm - 89mm 1067mm Double 9,821kg
Slingco ZCS5366 Thimble Eye 89mm - 114mm 1118mm Double 12,053kg
Slingco ZCS5367 Thimble Eye 114mm - 140mm 1219mm Double 13,839kg
Slingco ZCS6012 Thimble Eye 140mm - 180mm 1524mm Double 22,685kg
Slingco ZCS5529 Thimble Eye 180mm - 240mm 2000mm Triple 30,000kg
Double Thimble Eye - 316 Stainless Steel
Slingco ZCS5650 Thimble Eye 25mm - 38mm 660mm Double 3,438kg
Slingco ZCS5651 Thimble Eye 38mm - 63mm 1016mm Double 6,250kg
Slingco ZCS5652 Thimble Eye 63mm - 89mm 1067mm Double 6,874kg
Slingco ZCS5653 Thimble Eye 89mm - 114mm 1118mm Double 8,437kg
Slingco ZCS5654 Thimble Eye 114mm - 140mm 1219mm Double 9,687kg
Slingco ZCS6000 Thimble Eye 140mm - 180mm 1524mm Double 15,880kg
Double Eye Multiweave - Max Strength - 316 Stainless Steel
Slingco ZCS3995 Thimble Eye 29mm - 40mm 1270mm Double 55,800kg
Slingco ZCS3295 Flex Eye 70mm - 87mm 1460mm Multiple 55,800kg
Slingco ZCS3254 Flex Eye 76mm - 89mm 1460mm Multiple 57,850kg
Slingco ZCS6004 Flex Eye 89mm - 120mm 1460mm Multiple 71,000kg
Slingco ZCS3414 Flex Eye 120mm - 130mm 1981mm Multiple 71,000kg
