Heavy Duty Cable Grips - Slingco RT Type Rotating Eye Cable Grip



Heavy Duty Cable Grips

Slingco RT Type Rotating Eye Cable Grip



The Slingco RT Type cable grips have a double weave construction for medium to heavy cable pulling applications in underground installations.

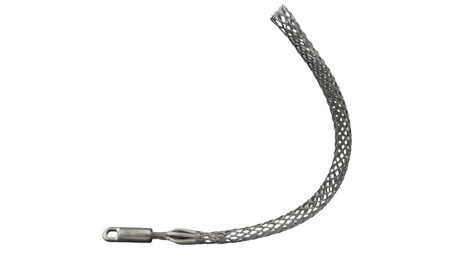

Pictured: Slingco RT Type Rotating Eye Cable Grip

Slingco RT Type Rotating Eye Cable Grip

The RT Type cable grip also has a steel forged revolving head which is ideal for connecting to cable pulling swivels and shackles. RT Type Rotating Eye Cable Grip does not revolve under load.

Slingco RT Type Rotating Eye Cable Grip Specifications
Slingco Part No. Size Range Revolving Eye Dia. Lattice Length Approx Breaking Strength
Short Length
ZCS2734 13mm - 16mm 23mm 280mm 2,540kg
ZCS2735 16mm - 19mm 23mm 280mm 3,085kg
ZCS2736 19mm - 25mm 25mm 508mm 3,085kg
ZCS2738 25mm - 38mm 35mm 533mm 5,805kg
ZCS2739 38mm - 50mm 35mm 635mm 7,440kg
ZCS2740 50mm - 63mm 41mm 660mm 12,385kg
ZCS2741 63mm - 76mm 48mm 711mm 14,970kg
ZCS2742 76mm - 89mm 48mm 762mm 18,600kg
ZCS2743 89mm - 102mm 48mm 813mm 19,510kg
ZCS2744 102mm - 115mm 48mm 838mm 19,510kg
Extra Long
ZCS2745 13mm - 16mm 23mm 406mm 2,540kg
ZCS2746 16mm - 19mm 23mm 406mm 3,085kg
ZCS2747 19mm - 25mm 25mm 812mm 3,085kg
ZCS2748 25mm - 38mm 35mm 838mm 5,805kg
ZCS2749 38mm - 50mm 35mm 863mm 7,440kg
ZCS2750 50mm - 63mm 41mm 914mm 12,385kg
ZCS2751 63mm - 76mm 48mm 965mm 14,970kg
ZCS2752 76mm - 89mm 48mm 990mm 18,600kg
ZCS2753 89mm - 102mm 48mm 1041mm 19,510kg
ZCS2754 102mm - 115mm 48mm 1066mm 19,510kg
ZCS2755 115mm - 127mm 48mm 1473mm 19,510kg
ZCS2756 127mm - 153mm 48mm 1524mm 19,510kg
ZCS2757 153mm - 178mm 48mm 1676mm 19,510kg
