Abtech BPG Fire Rated Electrical Enclosures & Junction Boxes

By Chris Dodds on 17th August, 2012

Follow @ThorneanDerrick

Abtech GRP BPG Electrical Enclosures & Junction Boxes

Fire Rated Junction Boxes & Electrical Enclosures

ATEX Zone 1 & Zone 2



Abtech BPG GRP fire rated electrical enclosures comprise 16 sizes and are fitted with ceramic terminals to meet fire resistant requirements of IEC 331 (750°C for 3 hours) and BS6387/1983 (950°C for 3 hours - flame only).

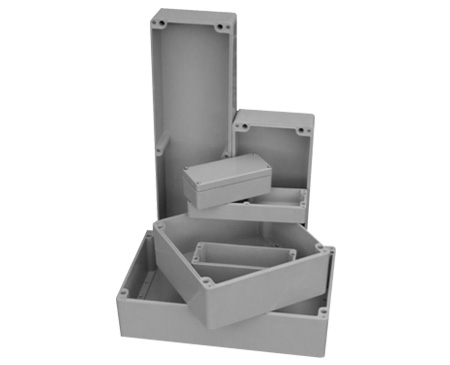

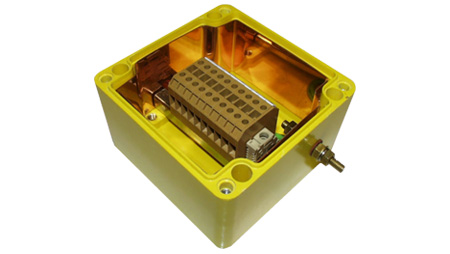

Pictured: Abtech BPG Fire Rated Electrical Enclosures & Junction Boxes

The Abtech BPG range of GRP hazardous area enclosures are manufactured in glass reinforced polyester and are also suitable for LSOH (low smoke zero halogen) applications. GRP enclosures provides excellent mechanical strength and life expectancy for superior junction box performance.

Abtech BPG enclosures have many features which lend itself to a whole host of applications including both industrial and hazardous area junction boxes, OEM applications, fire protection systems, tunnel wiring etc. The BPG range can be customised and is also available carbon loaded - reducing the risk of spark from static build up.

Abtech BPG (GRP) Range Of Enclosure & Junction Box Features

• Wide Operating Temperature (-60°C to + 130°C) (-76°F to +266°F)
• Ingress Protection up to IP67
• Fire Resistant to IEC331
• Impact Resistant > 7Nm
• UV Resistant
• Can be drilled and tapped to accommodate most thread forms (NPT for example)
• UL, CSA, IEC Ex, ATEX, InMetro and TR CU Approvals
• Ideal for Petrochemical and Marine applications

Hazardous Area Zones Classification

Zone 1 - where flammable atmosphere is likely to occur during normal operation.
Zone 2 - where flammable atmosphere is not likely to occur during normal operation and if it does will only exist for short period of time, typically less than 10 hours per year.


Abtech BPG (GRP) Hazardous Area Enclosure Specifications

Product Reference	Width	Height	Depth
Abtech BPG1	80mm	75mm	55mm
Abtech BPG2	110mm	75mm	55mm
Abtech BPG3	160mm	75mm	55mm
Abtech BPG4	190mm	75mm	55mm
Abtech BPG4.5	190mm	75mm	75mm
Abtech BPG5	230mm	75mm	50mm
Abtech BPG6	122mm	120mm	90mm
Abtech BPG7	220mm	120mm	90mm
Abtech BPG8	160mm	160mm	90mm
Abtech BPG9	260mm	160mm	90mm
Abtech BPG10	360mm	160mm	90mm
Abtech BPG11	560mm	160mm	90mm
Abtech BPG12	255mm	250mm	120mm
Abtech BPG13	400mm	250mm	120mm
Abtech BPG13.5	400mm	250mm	160mm
Abtech BPG14	600mm	250mm	120mm
