Abtech GRP BPG

LV Electrical Enclosures & Junction Boxes

Zone 1 Zone 2 Hazardous Area Rated

ATEX IECEx hazardous area certifications





Abtech GRP BPG Electrical Enclosures & Junction Boxes Range

Abtech BPG GRP electrical enclosures and junction boxes are ATEX certified and suitable for Zone 1 and Zone 2 hazardous areas.

Abtech BPG enclosures are available in 16 sizes manufactured from glass reinforced polyester (GRP) – suitable for use in hazardous areas, specifically ATEX and IECEx Ex ‘e’ (Zone 1 & 2), EEx ‘nA’ (Zone 2) and CSA, UL & FM (Class 1, Div 2).

GRP enclosures are highly resistant to contamination from oils, fats, aliphatic and aromatic carbohydrates, bacteria and enzymes. It is also suitable for LSOH (low smoke zero halogen) application.

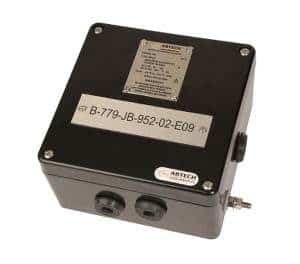

Abtech GRP BPG Electrical Enclosures & Junction Boxes (Zone 1 & 2, ATEX)


Abtech BPG enclosures can be upgraded for fire fire resistance applications when fitted with ceramic terminals meeting the requirement of IEC331 (750 degrees Celsius for 3 hours) and BS6387/1983 (950 degrees Celsius for 3 hours - flame only).

Due to the BPG hazardous area enclosures labyrinth seal system, where the seal is protected from external forces, the BPG enclosure has excellent ingress protection qualities (IP66 IP67) and have passed the Shell/ERA deluge test.

Hazardous Area Certification

Hazardous Area Enclosures: Intrinsically Safe Junction Boxes

Abtech BPG enclosures are certified according to leading hazardous area classifications including:

  • ATEX & IECEx (Zone 1 & 2; Zone 21 & 22)
  • TR CU
  • NEMA 4X (CSA, UL & FM) Class 1 Division 2

The range can be supplied with a number of certificates:

  • ATEX EEx‘e’ to BS EN 50019 (Zone 1 & 2) EEx‘nA’ to BS EN50021 (Zone 2)
  • NEMA 4X (CSA, UL & FM Class 1, Div 2)

T&D, The Explosive Atmosphere Experts, provide a single-source capability for the most extensive range of Electrical, Mechanical, Process & Instrumentation Equipment suitable for hazardous area locations.

Abtech BPG Junction Boxes Selection Table

If in doubt, please contact T&D for specification support and selection advice about hazardous area junction boxes and enclosures.

Abtech Part Number Width (mm) Height (mm) Depth (mm)
BPG1 80 75 55
BPG2 110 75 55
BPG3 160 75 55
BPG4 190 75 55
BPG4.5 230 75 75
BPG5 122 120 55
BPG6 220 120 90
BPG8 160 160 90
BPG9 260 160 90
BPG10 360 160 90
BPG11 560 160 90
BPG12 255 250 120
BPG13 400 250 120
BPG13.5 400 250 160
BPG14 600 250 120
BPG15 400 405 120
