Stahl Ex d Enclosure GUBox

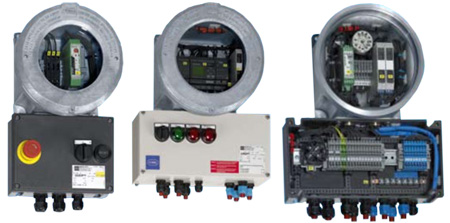

Stahl GUBox range of explosion-proof/flameproof enclosures are internationally approved for use in zones 1 and 2. They are suitable for assembling into motor starters, control boxes and terminal boxes, and can house switchgear, measuring equipment, circuit boards, power supplies and similar components.

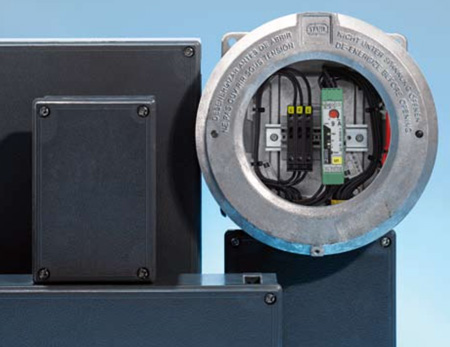

The Ex d enclosures are manufactured from a copper-free, seawater-resistant aluminum alloy. Optionally, high quality windows are available in the lids, allowing users to read the internal displays of measuring equipment. The enclosure body is machined to high precision and can be fitted with an additional O-ring which fits securely in place, increasing the ingress protection from IP54 to IP66.

Explosion and flame proof cable glands or threaded holes for conduit connections can be drilled directly into the enclosures or indirect entry can be supplied. Stahl offers users application consulting and provides complete packages, including control systems.

Explosion Proof Ex d Light-Metal Enclosure Features

• Available as an universal empty enclosure, or completely equipped, wired and certified
• Terminal compartment enclosure available in many sizes
• Large enclosure opening allows easy and quick installation
• Access to full internal space > available in 4 different sizes
• Type of protection IP66
• Seawater-resistant according to EN 13 195-1
• Surface made of copper-free aluminium alloy, powder coating optional
• Lid with large inspection window to allow undistorted view of enclosed equipment
• Mounting plate, carrier rails and other accessories

Stahl GUBox Light-metal Ex d Enclosures Specifications

Order Number	Version	Outer Dimensions (L x W x D)	Surface Epoxy Coated Or Aluminium	Available With Inspection Window	Viewing Cutout In Inspection Window
Stahl 8265/02	Size 2	155 x 155 x 132mm	✓	✓	107mm
Stahl 8265/03	Size 3	195 x 195 x 172mm	✓	✓	143mm
Stahl 8265/04	Size 4	236 x 236 x 227mm	✓	✓	191mm
Stahl 8265/06	Size 6	335 x 335 x 275mm	✓	✓	191mm
