Bright Light In Any Environment With Stahl LED Lighting Series 6149/2 For Hazardous Areas

By Chris Dodds on 7th August, 2012

Follow @ThorneanDerrick



Hazardous Area Lighting

Stahl LED Lighting Series 6149/2

Stahl Lighting - Zone 1 & Zone 2 Hazardous Area



Stahl portable LED lamps for inspection tasks in hazardous areas. Stahl new 6149/2 series of inspection lamps are equipped with LEDs instead of cold cathode tubes (CCFL), ensuring a much lower energy consumption and better luminous intensity for hazardous area lighting and working.

Stahl LED Lighting Series 6149/2 Features & Benefits

• Extremely long service life due to LED used
• Also suitable for machine lighting
• Anti-roll design in the grip
• Lockable suspension hooks
• For 110 ... 240 V AC / DC, 24 ... 48 V AC / DC or 12 V DC
• High power LEDs including driver in innovative design

Stahl LED lamps are suitable for zone 1, 2, 21 and 22 hazardous areas, they are available as T4 models which can be used even at extreme ambient temperatures between -40 and +60 °C (T6 models also available). With a colour temperature of 6000K, which approximates daylight, the LEDs ensure good visibility of machine parts and other hazardous working areas.


A diffuser lens prevents the light from blinding users. The Stahl model range for nominal voltages of 24-48 V AC/DC and 110-240 V AC/DC is extended by a new type with a 12 V DC input voltage. All Stahl portable LED lamps are IP66/67 protected and have an operating life of up to 50,000 hours.

An ergonomically shaped handle prevents Stahl LED lamps that have been put down during operation from accidentally rolling away. A lockable hook allows users to hang up the lamp. Optional accessories include a safety guard that protects the lamps against shocks in especially rugged environments


Stahl LED Lighting Series 6149/2 Technical Data

Version	Stahl 6149/2-2 (12V)	Stahl 6149/2-3 (24 ... 48 V)	Stahl 6149/2-5 (110 ... 240 V)
Rated operational voltage	12 ± 10 % V DC	24 ... 48 ± 10 % V AC / DC; 50 / 60 Hz	110 ... 240 ± 10 % V AC / DC ; 50 / 60 Hz
Nominal operational current	12 V  1,3 A	24 V AC / DC  0.7 A 48 V AC / DC  0.3 A	110 V AC  0.13 A 240 V AC  0.07 A
Ambient temperature	- 40 ... + 40°C	T4: - 40 ... + 60°C T6: - 40 ... + 40°C	T4: - 30 ... + 60°C T6: - 30 ... + 40°C
Luminous flux	ca. 600 lm	ca. 600 lm	ca. 670 lm
Luminous intensity	253 Lux in 1m distance	253 Lux in 1m distance	285 Lux in 1m distance
Lamps	LED - typ. 6000K
Degree of protection	IP66 / IP67
Protection class	II
Enclosure tube material	Polycarbonate
Grip & Sealing Cap material	Aluminium
Rubber grip & Suspension hook material	NBR / PVC (EPDM)



• Further Reading

Stahl EC-710 Compact Hazardous Area Camera - Visibility In Any Position

T&D Welcome Stahl



Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.

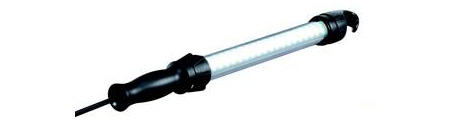

Stahl Hazardous Area Lighting - Inspection Light LED Series 6149/2
