Stahl EC-710 Compact Hazardous Area Camera  - Visibility In Any Position

Is The Stahl EC-710 Series Compact Camera, The World's Toughest Hazardous Area Camera?

The EC-710 is a compact camera from Stahl designed specifically for the harshest hazardous area environments as part of the range of Stahl hazardous area camera & video equipment range of products.

With a 130 year history, Stahl hazardous area electrical equipment is specified throughout the global oil and gas sectors to provide reliable performance in potentially explosive atmospheres.

Stahl key explosion-proof product ranges include hazardous area Safety Barriers, Lighting, Ex d Electrical Enclosures & Junction Boxes, Plugs & Sockets, Control Stations, Motor Starters and Load Disconnect Switches.

Often areas with minimal space or limited human access can be difficult to monitor. The EC-710 is designed to Stahl Compact Camera EC-710 Seriesfunction not only in small areas but also hazardous areas.

Easy to clean, the Stahl EC-710 can be cleaned with high pressure water eliminating the need for the camera to be manually cleaned.

Pictured: The Stahl EC-710 Compact Camera For Hazardous Areas

Specs And Certifications - What Makes The Stahl EC-710 So Tough?

The Stahl EC-710 has an operational temperature range of -40°C - +75°C meaning there is effectively no environment on earth that the camera cannot function in. There are 7 lenses giving 7 different viewing angles to ensure constant monitoring and overview of the required area.

The low power consumption allows the camera to be easily run using solar power alone or a battery and has quick, easy cost saving mounting/installation.

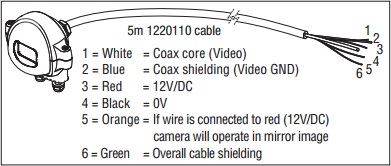

Pictured: How To Connect The Stahl EC-710 Compact Camera

How To Install the Stahl EC-710 Hazardous Area Camera

The Stahl EC-710 hazardous area camera is certified for use in Zone 1, 2, 21, 22 according to :

  • Ex II 2 G Ex mb IIC T6/T5/T4 Gb
  • Ex II 2 D Ex mb IIIC T85/100/125°C Db
  • KEMA 03 ATEX 0102x
  • IECEx KEM 09.0039x

Applications - Where The Stahl EC-710 Camera Can Be Used

The potential applications of the Stahl EC-710 are almost limitless. With its ability to fit into the tightest of spaces and operate in hazardous areas and extreme temperatures, the EC-710 camera is one of the ATEX IECEx Hazardous Area Cameratoughest cameras available.

Typically the EC-710 is used within the oil and gas, petrochemical and other hazardous areas and is another addition to expansive range of hazardous area products distributed by T&D.

Accessories And Other Products Within The Stahl Camera Range

The range of Stahl camera accessories is constantly expanding and certain custom accessories can be made to order. The range of accessories that can be used in conjunction with the EC-710 Compact Camera include:

  • Terminal box
  • Video Encoder
  • Monitors
  • Video Management Systems
  • Software for Network Solutions
  • Multi cable
  • Ex Wireless
  • Plug
  • Sight Glass Holder
  • Quick Connect
  • Shock Absorber
  • Protective Cap

The rest of the Stahl safety and security monitoring range expands to:

  • Dome Camera
  • Thermal Imaging Camera
  • Zoom Camera
  • Compact Camera Optional With Sight Glass

T&D distribute an extensive range of Hazardous Area Cameras with ATEX and IECEx certification for use in the global oil, gas and petrochemical industries.

Adobe

Stahl EC-710 Series Compact Hazardous Area Camera (Zone 1 Zone 2)
