Kingsmill Copper Earth Bars Customised & Delivered to Site

By Chris Dodds on 15th August, 2012

Follow @ThorneanDerrick

Earthing & Lightning Protection

Kingsmill Earth Bars



T&D working with Kingsmill Earthing have designed and delivered customised earth bars for Integral Building Services Ltd.

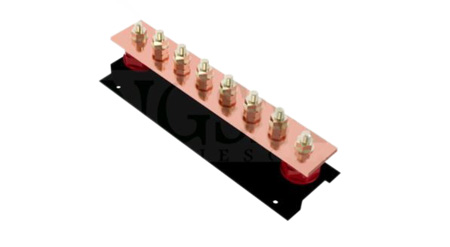

Pictured: Kingsmill Earth Bars

Earth bars provide a convenient common earthing point for electrical installations. Kingsmill copper earth bars are available with single or twin disconnecting links which means the earth bars can be isolated for testing.

Customised earth bars are available according to client specification including 600amp and 1000amp heavy power earth bars. Kingsmill manufacture earth bars to your requirements using quality copper components, this customised service is tailored to your project requirements. Any size of copper earth bar can be sourced, fixing materials changed and channel bases can be redesigned to enable a product to be engineered that meets your exact earthing requirements.

Kingsmill Copper Earth Bar Features

• 50x6mm Hard Drawn Copper Bar to BS EN 13601
• M10x35 Brass Connection Bolts
• Zero Halogen, Glass Reinforced Polyester Insulators c/w M10 Brass Inserts
• Black Powder Coated Steel Base



Kingsmill Earthing & Lightning Protection Earth Bar Specifications

Part No.	Description	Dimensions
Kingsmill EBAR6	6 Way Earth Bar	300mm x 100mm x 90mm
Kingsmill EBAR8	8 Way Earth Bar	450mm x 100mm x 90mm
Kingsmill EBAR10	10 Way Earth Bar	450mm x 100mm x 90mm
Kingsmill EBAR12	12 Way Earth Bar	520mm x 100mm x 90mm
Kingsmill EBAR14	14 Way Earth Bar	650mm x 100mm x 90mm
Kingsmill EBAR16	16 Way Earth Bar	800mm x 100mm x 90mm
Kingsmill EBAR18	18 Way Earth Bar	800mm x 100mm x 90mm​
Kingsmill EBAR20	20 Way Earth Bar​	900mm x 100mm x 90mm​
Kingsmill EBAR22	22 Way Earth Bar​​	900mm x 100mm x 90mm​​
Kingsmill EBAR24	24 Way Earth Bar​​	1050mm x 100mm x 90mm​​
Kingsmill EBAR26	26 Way Earth Bar​​	1050mm x 100mm x 90mm​​​
Kingsmill EBAR28	28 Way Earth Bar​​	1250mm x 100mm x 90mm​​​
Kingsmill EBAR30	30 Way Earth Bar​​	1250mm x 100mm x 90mm​​​​
