Craig & Derricott Isolators & Switch Disconnectors Supplied To The Caledonian Cheese Company

By Chris Dodds on 10th July, 2012

Follow @ThorneanDerrick

Power Distribution & Feeder Pillars

Craig & Derricott Isolators & Switch Disconnectors

IP65 Sheet Steel Enclosures

Thorne & Derrick supplied The Caledonian Cheese Company based at Stranraer in south-west Scotland with Craig & Derricott Isolators which are IP65 rated for food processing area installations.

T&D specified and supplied 8off Craig & Derricott SDG00633N switch disconnectors, 63A, 3P + Switched Neutral on an overnight basis direct to site.

The IP65 sheet steel enclosures form just a small wedge of the Craig & Derricott i-switch range of switch disconnectors for low voltage isolation.

C&D SDG00633N i-Switch Disconnector Steel Enclosure Features

• 63A Ithe
• 3 Pole + Switched Neutral
• AC23 (380/440V) - 25kW
• AC23 (690V) - 30kW
• Hinged lid sheet steel enclosure
• Finish - Grey RAL7035
• Enclosure size 1.
• Tunnel terminal capacity: Min. cable -2.5mm,  Max  cable - 25mm2

Pictured: Craig & Derricott 63Amp i-Switch Disconnectors

Craig & Derricott Standard Switch-Disconnectors 63A Technical Data

Product No	Rating	Format	Interior Switch Product Range	Enclosure Size
SDS632	63A	2P	CS63	B (IP66)
SDS633		3P	CS63
SDS633NL		3P+NL	CS63
SDS633N		3P+N	CS63
SDS633EB		3P+2EB Aux	CS63

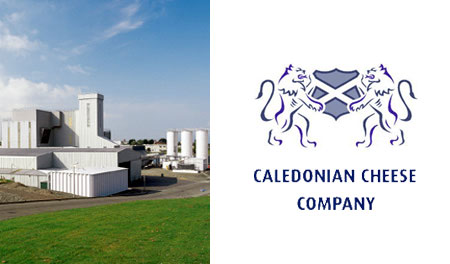

The Caledonian Cheese Company produces the highly successful McLelland brands Seriously Strong Cheddar, McLelland Mature Cheddar and Galloway Scottish Cheddar.

The creamery also produces several private label brands of cheddar for leading UK multiple food retailers including Coop, Netto, Morrisons, Sainsbury and Tesco.

The award-winning creamery uses high quality milk produced by the finest dairy farms in Dumfries and Galloway.

With its mild, moist climate, lush pastures and rolling hills, this unspoilt corner of Scotland is ideal for dairy farming.

Craig and Derricott Isolators i-Switch Disconnectors IP65 Sheet Steel Enclosure - 63Amp, 3Pin + Switched Neutral

Switch Disconnectors provide the means to safely disconnect and isolate an item of low voltage electrical equipment from the supply.

Craig & Derricott isolators primarily designed to provide a means of local isolation when an electrical item may need maintenance or repair, a Switch Disconnector has to comply with the following minimum requirements:

• Provide effective clearance between the supply and the load
• Provide means of locking in the 'Off' position (Padlocking)
• Provide true indication of the contact state
• Provide safe disconnection from the supply even under fault conditions

Craig and Derricott Isolators i-Switch Disconnector Dimensions (mm)

Dim	1	2	3	3A	4	4A	5	5A	6	7	8	9	10
H	250	250	400	350	500	400	550	550	750	750	900	900	1000
W	250	300	350	300	350	300	450	400	450	600	600	600	750
D	100	200	200	175	200	175	250	175	275	300	300	400	300
A	170	170	170	270	420	320	470	470	670	670	820	820	920
B	170	220	220	220	270	220	370	320	370	520	520	520	670
C	40	67	67	67	67	67	67	67	67	67	67	67	67
K	1.5	1.5	1.5	2.0	1.5	2.0	2.0	2.0	2.0	2.5	2.5	2.5	2.5
Ø	6.5	6.5	8.5	8.5	8.5	8.5	8.5	8.5	8.5	8.5	10.5	10.5	10.5



The 'i-switch' range provides the user with the widest choice ever from Craig & Derricott. Enclosed products with protection to IP41, IP65 or IP66 are available in ratings 20A - 1000A, and for the equipment builder 'i-switch' now includes a complete range of load break interiors and accessories 16A - 1250A.

Craig & Derricott manufacture power and control switches, control stations, switch disconnectors, isolators, turnkey solutions, switches and push buttons.

Craig & Derricott Isolators & Switch Disconnectors - Catalogue Download



Video: Craig and Derricott Hinged Door Installation Video

• Further Reading

Fire Rated Isolators & Switches To BS EN 12101-3 : 2003 For Smoke & Heat Controls



Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.





Craig & Derricott Hinged Lid Switch Disconnector IP65 Datasheet
