ATEX Zone 22 Hazardous Area Isolators For Non-Conductive Dust Atmospheres

By on 29th July, 2014

Follow us on LinkedIn

ATEX Zone 22 Hazardous Area Isolators For Non-Conductive Dust Atmospheres

How Safe Is Your Workspace?

Craig & Derricott ATEX Zone 22 Isolators

ATEX Zone 22 areas are those that are classified as a place in which an explosive atmosphere, in the form of a cloud of combustible dust in air is not likely to occur in normal operation. If it does occur however, it would only be present for a short period of time.

Traditionally, hazardous areas are thought of as those that have the presence of gases, mists or vapours present. There are a range of industries however where a conductive or non-conductive dust mixed in the right quantities can become explosive.

  • Grain Mills/ Elevators
  • Flour And Feed Mills
  • Plants That Manufacture, Use Or Store Magnesium Or Aluminium Powders.
  • Textiles
  • Cargo Handling
  • Powder Coating
  • Chemicals
  • Woodworking
  • Waste Processing
  • Producers Or Starch Or Sweets
  • Coal Peperation Plants
  • Spice Grinding Plants

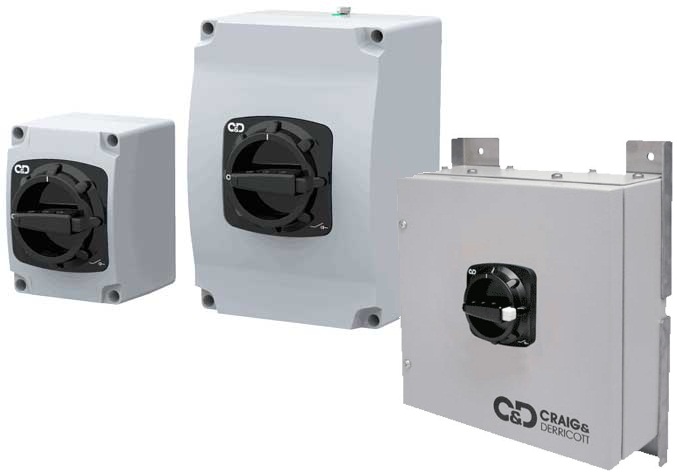

Pictured: Craig & Derricott ATEX Zone 22 Certified Isolators

Craig & Derricott ATEX Zone 22 Certified Isolators

The range of Craig & Derricott Atex zone 22 isolators are typically used in industries such as grain mills, woodwork and sawmills, waste processing and powder coating plants to enable the building to comply with health and safety regulations.

Features & Benefits

The range of Craig & Derricott ATEX Zone 22 isolators have the option to be padlocked in the off position. Each item allows for three padlocks to be attached. The 'EB' addition to the catalogue numbers denotes the inclusion of 2 off early break contacts. In every product, these are fitted to the isolator interior.

Pictured: Craig & Derricott ATEX Zone 22 Isolators Technical Specifications

Craig & Derricott ATEX Zone 22 Isolators Technical Specifications

Craig & Derricott ATEX Zone 22 Isolators Certification

The range of Zone 22 Isolators are speicified to and comply with a number of British Standards. These are applicable for the 20A-63A isolators. The relevant standards and certification details are:

Die Cast Aluminium
Coding Craig & Derricott ATEX Zone 22 Isolator Certification  II 3D
Ex tc IIIB T850C dc
Complies in part or in full with standards:- EX tv IIIB T85ºC dc
Sheet Steel
Coding Craig & Derricott ATEX Zone 22 Isolator Certification Ex II 3D
Ex tD A22 IP65 T850C
Complies in part or in full with standards:-  BS EN 60079-0, BS EN 61241-0, BS EN 61241-1, BS EN 60529, BS EN 60947-3, BS EN 60204-1



Craig & Derricott ATEX Zone 22 Isolators from Thorne & Derrick (Power Products) Tel 00 44 191 4901547
