Copper Earthing for Scottish Wind Farm Projects - AN Wallis TC253 Copper Earth Tape

By Chris Dodds on 2nd January, 2013

Follow @ThorneanDerrick

Copper Earthing & Lightning Protection Systems

AN Bare Copper Earthing Tape

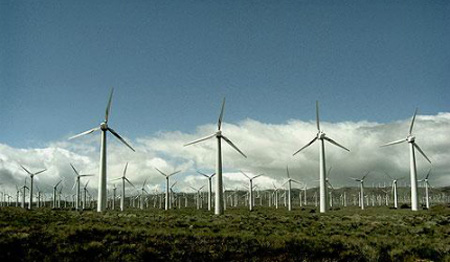

T&D have supplied 500 metres of TC253 Copper Earth Tapes plus ancillaries from stock for overnight delivery to South Moorhouse Farm, Glasgow to enable completion of the Earthing & Lightning Protection System for the wind farm turbines.

Copper earth tape forms an essential component of earthing and lightning protection systems - bare copper, LSF, PVC and green/yellow insulated copper earth tapes are available.

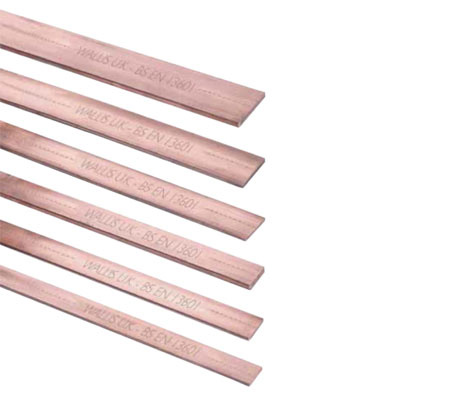

AN Wallis high conductivity bare copper tape is annealed for ease of use and has radiused edges. All standard bare copper tapes are marked 'Wallis U.K.- BS EN 13601'.

AN Wallis TC253 Bare Copper Earth Tapes Specifications

Part No.	Size W x H	CSA	Weight By Metre	Standard Coil Size
AN Wallis TC253	75mm	75mm²	0.67kg	25m & 50m
