Cable Pulling 11kV 3 Core XLPE SWA Cables Into Trench

By Chris Dodds on 10th February, 2017

Follow @ThorneanDerrick

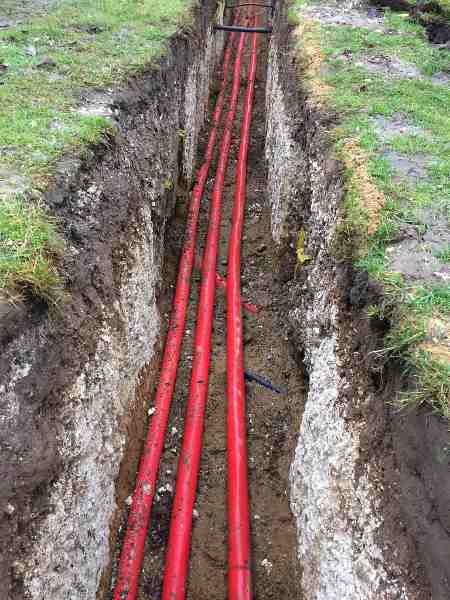

Pictured: Cable Pulling 11kV 3 Core XLPE SWA Cables Into Trench

Image: Jim Andrews - SPEC (Specialist Power Engineering Contracts) Cabling Contracts Manager

3 x 3 core 95sqmm 11kV cables pulled into cable trench with 198 existing services all at various levels - including telecoms, fibres, LV and HV power cables as well as gas and water utilities had to be avoided with the winch rope and cables over the entire cable run.

Top job from Team SPEC and their Cabling Division on some very wet and dirty days.
