11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear

By Chris Dodds on 9th May, 2016

Follow us on LinkedIn

11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear

Image: Ryan Carlin - Cable Jointer up to 11kV & Electrician at Dragon Infrastructure Solutions

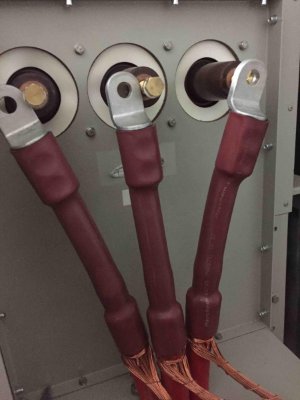

Pictured: 11kV Heat Shrink Terminations Connecting MV UKPN Cables To Lucy Switchgear - the 3 single core 11kV cables are pictured entering the MV switchgear through a single cable entry point with the anti-track (red) heat shrink tubing already shrunk perfectly into position and the copper wire screens bonded to earth usually using brass mechanical cable lugs, such as Sicame Hepworth.
