11kV Heat Shrink Resin Encapsulated Cable Joint (XLPE CTA SWA 3 Core)

By Chris Dodds on 30th September, 2016

Follow us on LinkedIn

11kV Heat Shrink Resin Encapsulated Cable Joint (XLPE CTA SWA 3 Core)

Image: 11kV Heat Shrink Resin Encapsulated Cable Joint (XLPE CTA SWA 3 Core)

Pictured: Lee Richards - Electrical Supervisor at Dragon Infrastructure Solutions

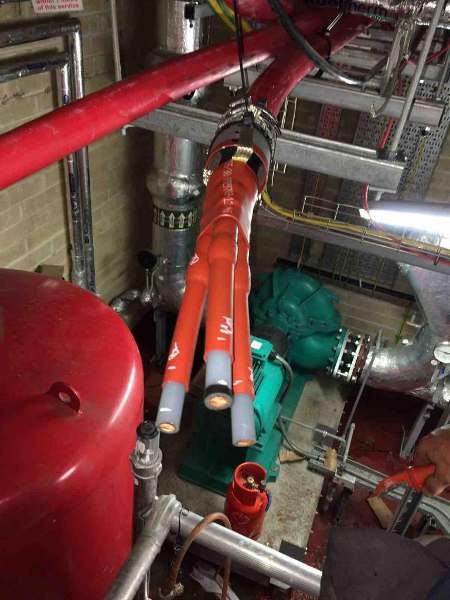

1. 40 degrees Celsius in a plant room, suspended in the air and the cable jointer is working on an 11kV XLPE screened polymeric resin filled heat shrink cable joint.

11kV SWA screened poly resin filled joint

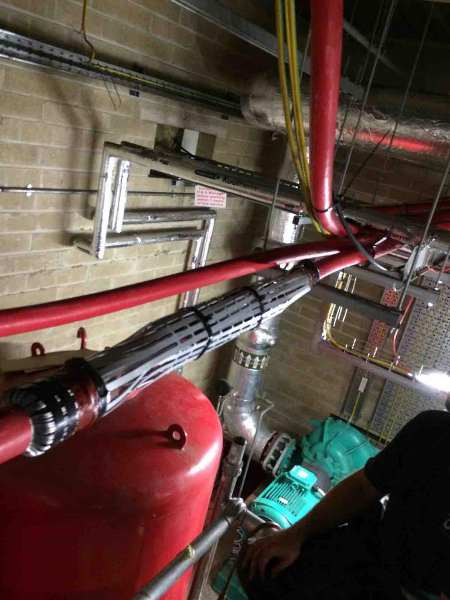

2. 11kV SWA Screened Polymeric Resin Filled Cable Joint

11kV SWA screened poly resin filled joint

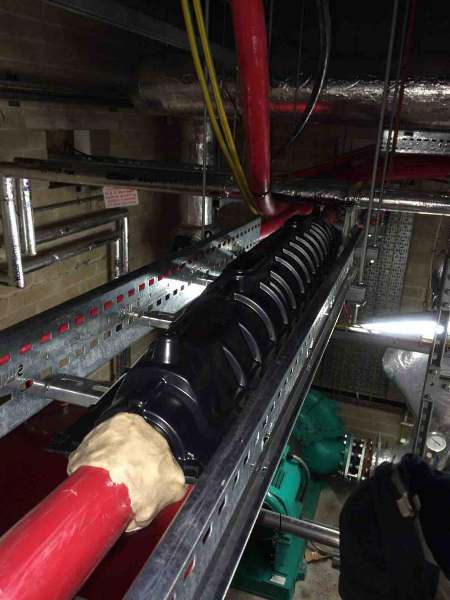

3. 11kV Heat Shrink Resin Encapsulated Cable Joint (XLPE CTA SWA 3 Core)

11kV Heat Shrink Resin Encapsulated Cable Joint (XLPE CTA SWA 3 Core
