Abtech SX Electrical Stainless Steel Enclosures

By Chris Dodds on 29th July, 2012

Follow @ThorneanDerrick

Stainless Steel Enclosures & Junction Boxes

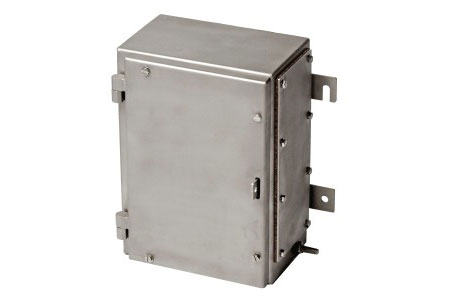

Abtech SX Hazardous Area Enclosures



The Abtech SX range of stainless steel enclosures and junction boxes includes 14 sizes manufactured in either 316 stainless steel or mild steel.

Abtech SX hazardous area stainless steel enclosures and junction boxes are available in standard depths of 140, 200 or 300mm and can be fitted with removable cable gland plates and client approved terminals.

Abtech SX range of stainless steel enclosures and junction boxes were specifically designed to meet the rigors of the North Sea and are capable of achieving IP66, IP67 and IP68 ingress protection.

SX hazardous area electrical enclosures have passed the Shell/ERA deluge test, devised to test enclosures and electrical equipment that is routinely subjected to ships decks conditions or fire deluge systems for marine and offshore applications.

Abtech SX Stainless Steel Enclosures & Junction Boxes Features

• Wide Operating Temperature (- 50°C to + 175°C) (-58°F to +347°F)
• Ingress Protection up to IP68
• Fire Resistant to IEC331
• Impact Resistant > 10 Nm
• Corrosion Resistant
• Gland plates can be fitted to any or all four sides (size SX66 and above)
• Certification for use in Zone 1 and 2
• UL, CSA, IEC Ex, ATEX, FM, InMetro and TR CU Approvals
• Ideal for Petrochemical and Marine applications



Abtech SX Stainless Steel Enclosure Available Sizes

Product No.	Width	Height	Depth
Abtech SX45	114mm	114mm	51mm
Abtech SX64	102mm	152mm	63mm
Abtech SX66	152mm	152mm	102mm
Abtech SX0	152mm	229mm	140mm / 200mm
Abtech SX0.5	184mm	274mm	140mm / 200mm
Abtech SX1	234mm	324mm	140mm / 200mm
Abtech SX1.5	306mm	306mm	140mm / 200mm
Abtech SX2	372mm	324mm	140mm / 200mm
Abtech SX3	372mm	448mm	140mm / 200mm
Abtech SX4	372mm	510mm	140mm / 200mm
Abtech SX5	510mm	510mm	140mm / 200mm
Abtech SX6	510mm	780mm	140mm / 200mm / 300mm
Abtech SX7	650mm	950mm	140mm / 200mm / 300mm
Abtech SX8	800mm	1250mm	140mm / 200mm / 300mm



Video: Abtech SX Enclosures - Zones 1 & Zone 2 Atex Certified
