Abtech Ablux ATR1 Road Lamp - Street Lighting Zone 2

By Chris Dodds on 19th August, 2013

Follow @ThorneanDerrick

Hazardous Area Lighting - Abtech Ablux ATR1 Road Lantern

Abtech Ablux ATR1 Road Lanterns provide efficient street lighting for Zone 2 areas. The Abtech ATR1 Road Lanterns are suitable for side arm mounting or post top mounting as standard.

The Abtech Zone 2 road lantern has an internal control gear suitable for both metal halide or high pressure sodium lamps with timed cut-out ignitor fitted as standard. Abtech Ablux ATR1 has IP65 ingress protection.



Abtech Ablux ATR1 Road Lantern Ratings

Product Reference	Lamp Type	Lamp Cap	Power (W)	Temperature Rating	AmbientTemperature	Weight(kg)
ATR170SH	HPS/MBI	E27	70	T4	-50°C to 55°C	7.5



Abtech Ablux ATR1 Road Lantern Specifications

Luminaire Type: Zone 2 Road Lantern

Ingress Protection: IP65 to EN60529

Material: Die cast aluminium LM6 body, toughened glass window, silicone gaskets

Distribution/Output: Highly efficient pot optic reflector system

Lamp Types: High Pressure Sodium or Metal Halide

Lamp Cap: E27/ES

Lamp Change: Via front cover

Cable Entry: 1 x M20 clearance hole

Terminals: Terminal block for up to 6sqmm conductors as standard

Control Gear: Copper and iron ballast, timed cut-out impulse ignitor, pfc capacitator

Orientation: Horizontal, beam down

Mounting: Side arm mounting or post top mounting as standard

Supply: Standard: 220 to 254V 50/60Hz Option: other voltages available on request

Area Classification: Group II Category 3 G D (Zone2)

Type of Protection: Ex nR (restricted breathing)

Apparatus Coding: II 3 GD Ex nR II(see table for temperature rating & ambient temperature range)

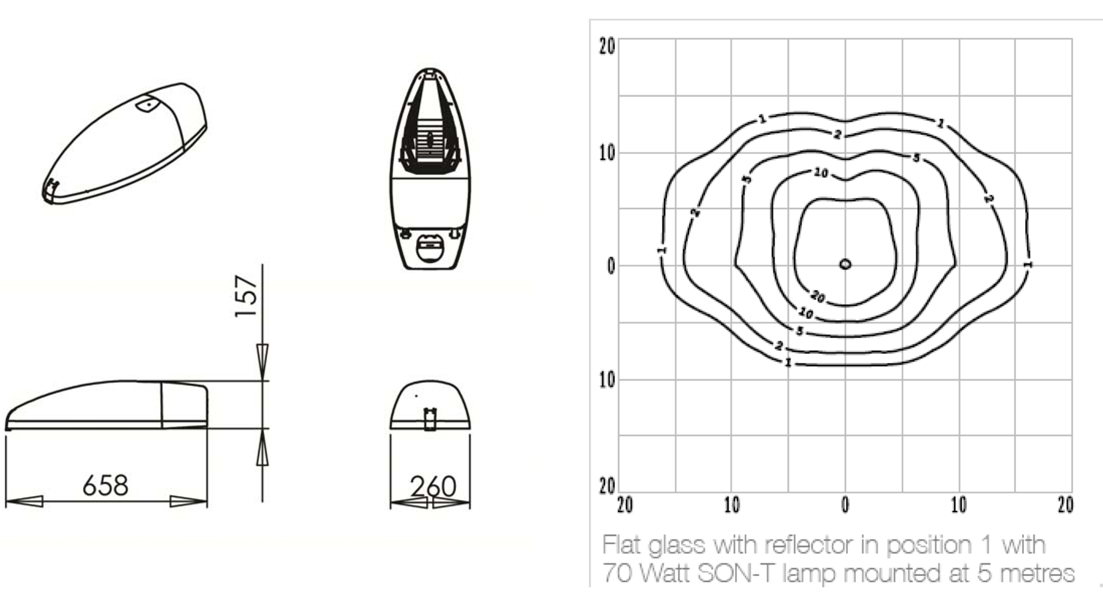

Abtech Ablux ATR1 Road Lamp - Street Lighting Zone 2 Data
