3M Heat Shrink Cable Repair Kits

3M Heat Shrink Wraparound Cable Sheath Repair Kits for Low & High Voltage Cables

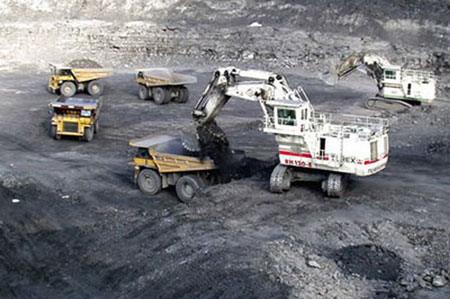

T&D have supplied Scottish Coal with 3M Heat Shrink Cable Repair Kits to re-instate insulation to damaged low and high voltage cable sheaths.

3M Wraparound Heat Shrink Cable Repair sleeves are designed to quickly repair damaged cable jacketing. They are also suitable for use with cable joints and as additional corrosion protection on undamaged cables.

3M HDCW is made from modified cross-linked polyolefin with a hot-melt adhesive coated to the inner side of the sleeve. Upon heating, the sleeve shrinks and the adhesive melts, thereby achieving a safe and watertight bond between the sleeve and the cable. A corrosion proof metal clip is then used to fully close the sleeve.

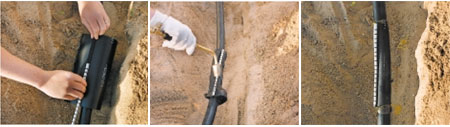

Pictured: 3M HDCW Wraparound Heat Shrink Cable Repair Sleeves

Mining cable repair kits are available for BS6708 underground mining cables including - Type 11, Type 7, Type 7S, Type 7M, Type 307, Type 307S, Type 307M Flexible trailing cables for use with coalcutters and similar face equipment, Type 211, Type 201, Type 62, Type 63, Type 64, Type 321, Type 331 Flexibile trailing cables with galvinized steel wire pliable wire armouring for use as mine extension cables in quarries and coalface lighting.

3M HDCW Wraparound Heat Shrink Cable Repair Sleeve Features & Benefits

• Easy and quick to install
• Cost-efficient
• Reliable and tough thick wall sheet
• No open cable needed
• Good bonding to PE and PVC

3M HDCW Heat Shrink Wraparound Cable Repair Sleeve Specifications

Reference No.	Cable Dia.	Expanded Inner Dia.	Recovered Inner Dia.	Length	Min Recovered Wall Thickness
3M HDCW 35/10-250	10mm - 35mm	50mm	8mm	250mm	2.0mm
3M HDCW 35/10-500	10mm - 35mm	50mm	8mm	500mm	2.0mm
3M HDCW 35/10-750	10mm - 35mm	50mm	8mm	750mm	2.0mm
3M HDCW 35/10-1000	10mm - 35mm	50mm	8mm	1000mm	2.0mm
3M HDCW 55/15-250	15mm - 55mm	75mm	13mm	250mm	2.0mm
3M HDCW 55/15-500	15mm - 55mm	75mm	13mm	500mm	2.0mm
3M HDCW 55/15-750	15mm - 55mm	75mm	13mm	750mm	2.0mm
3M HDCW 55/15-1000	15mm - 55mm	75mm	13mm	1000mm	2.0mm
3M HDCW 80/25-250	25mm - 80mm	100mm	23mm	250mm	2.0mm
3M HDCW 80/25-500	25mm - 80mm	100mm	23mm	500mm	2.0mm
3M HDCW 80/25-750	25mm - 80mm	100mm	23mm	750mm	2.0mm
3M HDCW 80/25-1000	25mm - 80mm	100mm	23mm	1000mm	2.0mm
3M HDCW 110/30-250	30mm - 110mm	132mm	25mm	250mm	2.0mm
3M HDCW 110/30-500	30mm - 110mm	132mm	25mm	500mm	2.0mm
3M HDCW 110/30-750	30mm - 110mm	132mm	25mm	750mm	2.0mm
3M HDCW 110/30-1000	30mm - 110mm	132mm	25mm	1000mm	2.0mm
3M HDCW 140/40-250	40mm - 140mm	145mm	32mm	250mm	1.8mm
3M HDCW 140/40-500	40mm - 140mm	145mm	32mm	500mm	1.8mm
3M HDCW 140/40-750	40mm - 140mm	145mm	32mm	750mm	1.8mm
3M HDCW 140/40-1000	40mm - 140mm	145mm	32mm	1000mm	1.8mm
