Sicame Hepworth ML4 Mechanical Connectors - 11kV Triplex Copper Wire Screen 35sqmm Termination Lugs

Sicame Hepworth ML4 Range Of Mechanical Connectors

11kV Triplex Copper Wire Screen 35sqmm Termination Lugs



Sicame Hepworth mechanical brass cable lugs are preferred by high voltage cable jointers for terminating the 35sqmm copper wire screens on 11kV Triplex cables to BS7870. The mechanical lugs are manufactured in copper alloy and suitable for jointing either copper or aluminium cored conductor.

Sicame Hepworth ML4 Mechanical Connectors

Sicame Hepworth brass cable lugs are also suitable for the termination of stranded/solid, circular conductor cores as well as earth screen termination applications.


Sicame Hepworth ML4 Mechanical Connectors Specifications
Product Reference Core csa Stud Size Dimensions
Stranded Solid
Min - Max Min - Max A B C D

Æ

Sicame Hepworth ML4/12-12

6mm² - 95mm²

16mm² - 120mm²

12 71 mm 24 mm 6 mm 21 mm 13 mm

Sicame Hepworth ML4/12-16

6mm² - 95mm²

16mm² - 120mm²

16 74 mm 27 mm 6 mm 25 mm 17 mm

Sicame Hepworth ML4/13-16

35mm² - 120mm²

35mm² - 150mm²

16 86 mm 30.5 mm 8 mm 32 mm 17 mm

Sicame Hepworth ML4/14-12

6mm² - 70mm²

16mm² - 95mm²

12 71 mm 24 mm 6 mm 21 mm 13 mm

Sicame Hepworth ML4/14-16

6mm² - 70mm²

16mm² - 95mm²

16 74 mm 27 mm 6 mm 25 mm 17 mm

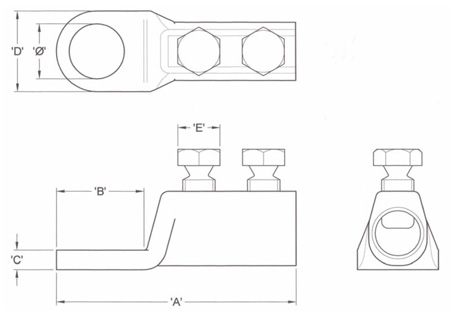

Sicame Hepsworth Mechanical Connectors Lugs Dimensions

Pictured: 11kV Triplex Cable - Solid or stranded aluminium conductor, XLPE insulated, copper wire screen (35sqmm). MDPE outer sheath. Red. 11kV to BS7870.



11kV Triplex Cables BS7870 - Mechanical Shearbolt Cable Lugs



Thorne & Derrick distribute a complete range of high voltage Triplex cable accessories including Ellis Patents Cable Cleats, Prysmian Cable Cleats, Prysmian Cable Glands, 3M Joints, 3M Terminations and Cembre Crimping Tools.
