Nexans Euromold Elbow Connector 400LR/G/15-X 11kV

Nexans Euromold 400LR Plug In Elbow Connector

400LR/G/15-X 11kV





Nexans Euromold Elbow Connector 400LR/G/15-X 11kV

• Current Ir 400 Amps
• Dia Over Core Insulation 16.0-22.0mm

Application : Nexans Euromold 400LR/G/15-X 11kV separable elbow connector (plug-in type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).

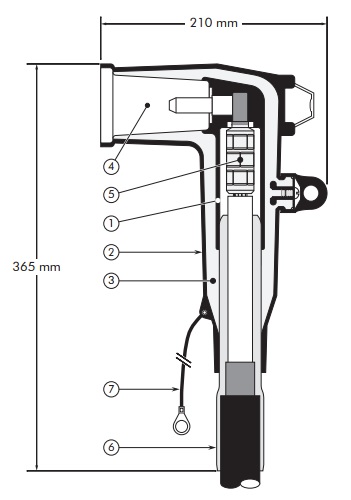

Nexans Euromold Elbow Connector 400LR/G/15-X 11kV - Specification Design

Separable connector comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer moulded between the insert and the jacket

4. Type B - 400 A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Cable reducer

7. Earthing lead
