Nexans Euromold 400LR Screened Separable Connectors 400 Series, up to 400A 33kV - Interface B

Nexans Euromold Connectors - Screened Separable Elbows & Tee Connectors

Nexans Euromold Interface Type B

 400 Series Bushings, 400amps, 11-33kV

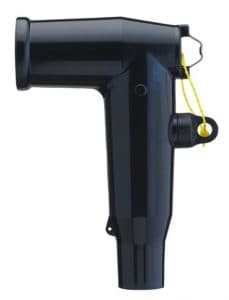

Nexans Euromold 400LR is a screened separable elbow connector specified to terminate and connect medium/high voltage cables onto Interface B bushings in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)
• 18/30 (36kV)
• 19/33 (36kV)

Nexans Euromold 400 series screened separable connectors are EPDM pre-moulded, high voltage cable terminations for 6.6kV, 11kV, 15kV, 24kV and 33kV electrical equipment including switchgear, transformers and motors.

Nexans Euromold separable elbow connectors are designed to terminate high voltagepolymeric (XLPE EPR) screened (copper wire or copper tape) cables to CENELEC Interface Type B (400amp) bushings with 14mm plug-in pins, up to 33kV.

Nexans Euromold 400 series separable connectors include Nexans Euromold elbow connectors, tee connectors, straight plug connectors, bushings (air, oil and gas insulated switchgear) and surge arresters to protect electrical equipment up to 33kV.

Nexans Euromold Separable Elbow Connectors 400 Series - 400LR  Features:

• Connector for terminating high voltage polymeric (XLPE EPR) cables, 11-33kV
• Plug in screened separable elbow connector with current rating 400amps
• Conductive EPDM jacket provides a touch safe screened termination
• Connectors suit copper wire and copper tape screened cable, 35-300sqmm
• Type B 400A interface to CENELEC EN 50180



Nexans Euromold 400LR Specification

Euromold separable connector type	Voltage Um (kV)	Current Ir (A)	Conductor sizes (sqmm)
			min	max
400LR/G	12kV	400 Amps	50	240
K400LR/G	24kV	400 Amps	25	240
M400LR/G	36kV	400 Amps	35	185

T&D UK with the support of Nexans provide installation training and certification for experienced high voltage cable jointers up to 33kV.

Nexans Euromold 400LR Elbow Connector Interface Type B Design

Nexans Euromold 400LR Separable Connector Comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer moulded between the insert and the jacket

4. Type B - 400A Interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Cable reducer

7. Earthing lead

The screen break design enables cable outer sheath testing without removing or dismantling the connector.



High Voltage Equipment Bushings - Nexans Euromold Bushings
Nexans Euromold separable connectors for terminating high voltage power cables are designed to mate with an outer cone type bushing on switchgear, transformers or motors - each screened separable cable connector has unique dimensions and/or electrical contact pins/screws.

Type A Bushings - 200 Series Bushings 7.9mm Plug In Pin, Voltage Range 12-24kV, Current Rating 250 Amps Copper Pin:

Use Nexans Euromold 158LR Plug In Separable Connector

Type B Bushings - 400 Series Bushings 14mm Plug In Pin, Voltage Range 12-36kV, Current Rating 400 Amps Copper Pin:

Use Nexans Euromold 400LR Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 630 Amps Copper Stud:

Use Nexans Euromold 400TB Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Copper Stud:

Use Nexans Euromold 440TB Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 800 Amps Aluminium Stud

Use Elastimold 650LR Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 675LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 800 Amps Aluminium Stud:

Use Eleastimold 750LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 775LR Plug In Separable Connector


T&D distribute the complete range of Nexans Euromold and Thomas & Betts Elastimold HV cable bushings, screened separable connectors, cable joints and cable terminations in both heat shrink and cold shrink for high voltage systems.
