Prysmian BICC BICON CW brass cable glands (KA419) are used to gland or terminate steel wire armoured cables in indoor and outdoor cable applications.

Prysmian CW brass cable gland kits include glands, earth tag, brass locknut and PVC shroud - available in LSF for weatherpoof and waterproof low smoke and fume cable terminations.

Prysmian Bicon CW brass cable gland kits are industrial cable glands used to terminate galvanised steel single wire armoured plastic or rubber sheathed cables in most climatic conditions.

CW Brass Cable Glands

Prysmian CW brass cable glands are used to terminate XLPE and PVC insulated cables with steel wire armour (SWA) in indoor applications, 600/1000 volts, including BS5467, BS6622 and BS5308 cable.

Prysmian cable glands provide mechanical cable retention and electrical continuity via cable wire armour locking mechanism.

Prysmian CW cable glands are rated up to IP66 with use of suitable sealing washer or thread sealant at cable gland interface. Prysmian BICON cable glands provide outer seal onto cable sheath providing a weatherproof and waterproof cable termination.

  • BS5467 Cable - Mains Power Cable XLPE SWA BS EN 60332

BS5467 Cable - Mains Power Cable XLPE SWA BS EN 60332



CW Prysmian Cable Gland Kit List

  • CW brass cable gland to BS6121-1
  • CW brass earth tag provides earth continuity between gland and equipment
  • CW brass gland locknut
  • PVC shroud provides enhanced ingress protection
  • 2 x Prysmian brass cable glands per kit up to and including 25mm



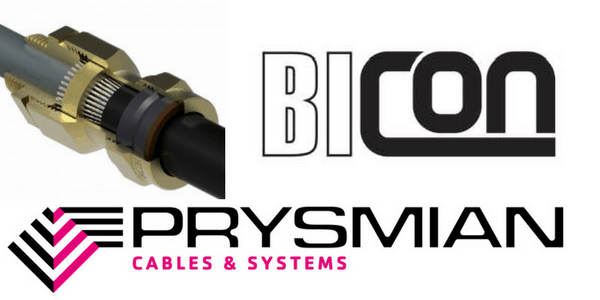

Pictured : Prysmian BICC BICON CW Cable Gland

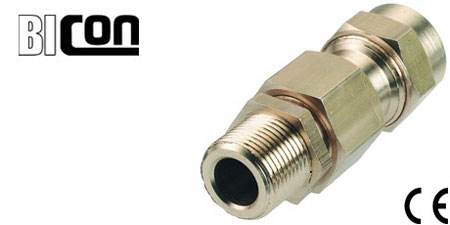

Prysmian CW Brass Cable Glands



LSF (Low, Smoke, Fume) cable gland versions are available.


Prysmian Bicon Reference Size Cable Dimensions (mm) CW Cable Gland Dimensions (mm)
Under Armour Max ∅ (A) Cable Diameter ∅ (B) mm Entry Thread (D) Thread Length (E) Length (F) Hexagon
Standard Nickel Plated Metric
/NPT
Min Max A/F (G) A/C (H)
KA419-51 KA419-51V 16 8.6 8.0 13.2 M16 x 1.5 10 44 20.8 23.8
KA419-71 KA419-71V 20SS 8.6 8.0 13.2 M20 x 1.5 10 44 23.4 26.7
KA419-52 KA419-52V 20S 11.6 8.0 15.8 M20 x 1.5 10 46 25.7 29.2
KA419-53 KA419-53V 20 13.9 11.7 20.8 M20 x 1.5 10 46 30.5 34
KA419-55 KA419-55V 25 19.9 17.0 27.2 M25 x 1.5 10 51 37.6 42.2
KA419-56 KA419-56V 32 26.2 23.5 33.5 M32 x 1.5 10 56 47.3 53.6
KA419-57 KA419-57V 40 32.1 29.0 39.9 M40 x 1.5 15 59 56.4 61.5
KA419-58 KA419-58V 50S 38.1 38.0 46.2 M50 x 1.5 15 64 65.5 72.1
KA419-59 KA419-59V 50 44.0 39.5 52.6 M50 x 1.5 15 64 70.1 77.2
KA419-61 KA419-61V 63 55.9 51.3 65.3 M63 x 1.5 15 67 80 87.4
KA419-63 KA409-63 75 67.9 62.5 78.0 M75 x 1.5 15 76 98.8 109.2
KA419-64 KA419-64V 85 74 68 88 M85 x 2.0 20 110 115 126
KA419-65 KA419-65V 90 79 79 90 M90 x 2.0 20 136 ∅114
KA419-66 KA419-66V 100 89 89 99 M100 x 2.0 20 136 ∅132.5
KA419-67 KA419-67V 110 99.5 99.5 112.5 M110 x 2.0 20 136 ∅ 138.5
- 419NP-10V 1" - 20S 11.6 8.0 15.8 1" NPT 17.5 46 36.0 40.0
- 419NP-08V 3/4" - 20 13.9 11.7 20.8 3/4" NPT 14.0 46 30.5 34
- 419NP-12V 1"-
25
19.9 17.0 27.2 1" NPT 17.5 51 37.6 42.2
- 419NP-16V 1
1/4" - 32
26.2 23.5 33.5 1 1/4" NPT 18 56 47.3 53.6
- 419NP-25V 2
1/2" - 50
44.0 39.5 52.6 2 1/2" NPT 29 64 80 87.4
- 419NP-26V 2
1/2" - 63
55.9 51.3 65.3 2 1/2" NPT 29 67 80 87.4

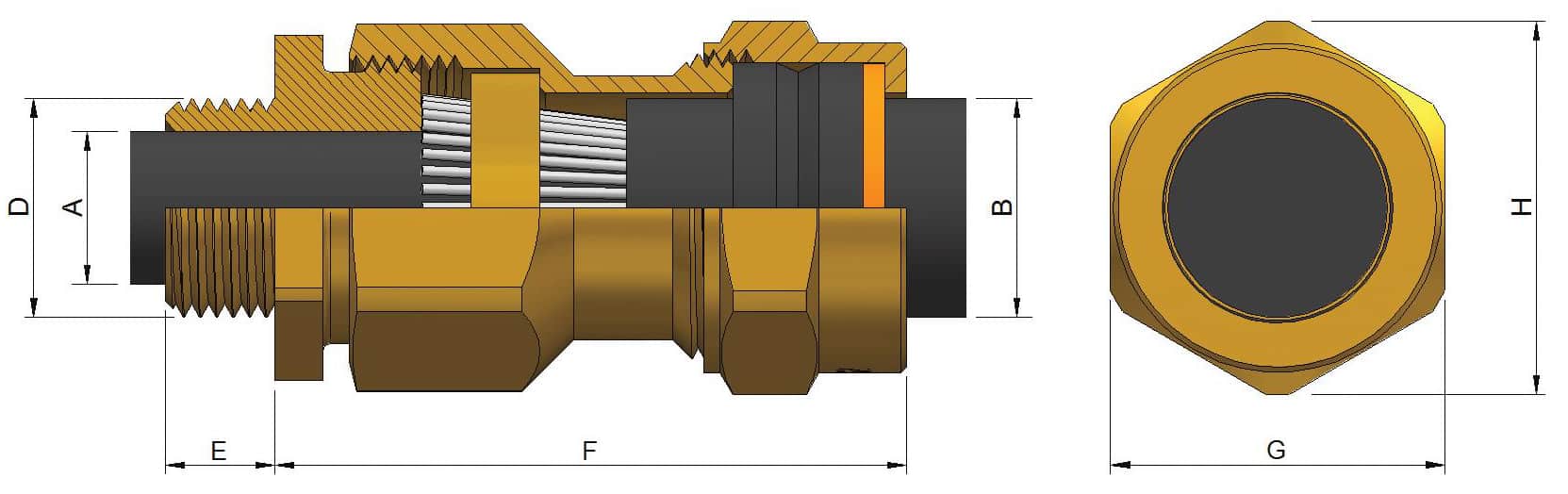

CW Brass Cable Glands - Dimensions
