BICC Bicon CW50K Brass Cable Gland Kit (Prysmian KA419-59) 39.5-52.6mm

CW Cable Glands

BICC Bicon Cable Gland CW50K

  Prysmian KA419-59

Industrial Cable Glands




BICC Bicon CW50K Cable Glands - Gland Kit Prysmian KA419-59

• Min Cable Dia 39.5mm
• Max Cable Dia 52.6mm
• Gland Entry Thread M50 x 1.5mm
• Gland Entry Thread Length 15mm

CW50K BICON Brass Cable Gland Kits are suitable for glanding and terminating steel wire armoured (SWA) cables both indoor and outdoor. Prysmian CW cable glands are rated up to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

CW50K Prysmian Cable Gland Kit List -  Prysmian KA419-59

• Brass cable gland to BS6121-1 with M50 entry thread
• Brass earth tag provides earth continuity between gland and equipment
• Brass gland locknut
• PVC shroud provides enhanced ingress protection
• 1 x CW50K Prysmian brass cable glands per kit

BICC Bicon CW50K Cable Glands

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Location: Outdoor (For outdoor termination of cables see BW50 Cable Gland)
• Order Code: KA419-59 (CW50)
• Type Of Cable Termination: SWA Armoured Cables
• Cable Gland Material: Brass
• Cable Gland Size: CW50
• Quantity Per Kit: 1 Gland

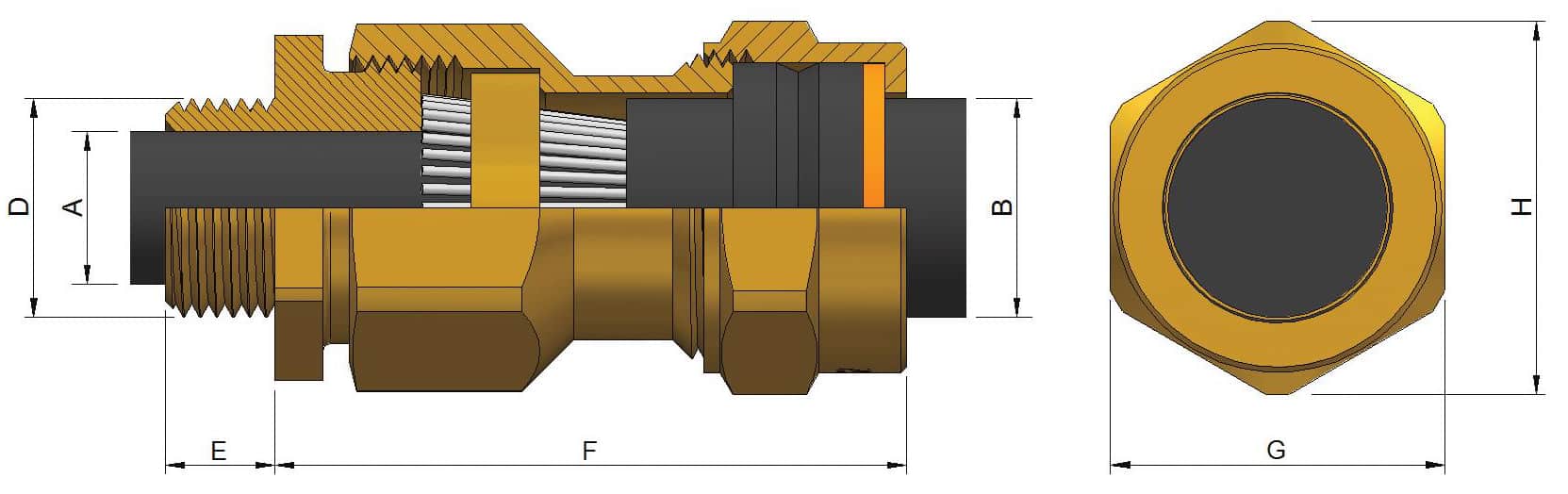

• Under Armour Max ∅ (A): 44.0mm
• Cable Diameter (B): 39.5-52.6mm
• Armour Wire ∅: 2.0/2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 70.1mm
• Hexagon A/C (H): 77.2mm
• Order Code: Prysmian Bicon KA419-59

• ​NPT Version: Prysmian Bicon KA419NP-25V
• Cable Gland Size: 2 1/2″ NPT – 50
• Quantity Per Kit: 1 Gland
• Under Armour Max ∅ (A): 44.0mm
• Cable Diameter (B): 39.5-52.6mm
• Armour Wire ∅: 2.0/2.5mm
• Entry Thread (D) : 2 1/2″ NPT
• Thread Length (E) : 29mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 80mm
• Hexagon A/C (H): 87.4mm

CW50K Cable Gland Kit Application : Prysmian CW50K (M20) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. CW50K brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF CW cable glands are available.


CW50K Brass Cable Gland Kit, 39.5-52.6mm
