BICC Bicon CW85K Brass Cable Gland Kit (Prysmian KA419-64) 68.0-88.0mm

Prysmian CW85KCW Cable Glands

BICC Bicon Cable Gland CW85K

Bicon  Prysmian KA419-64

Industrial Cable Glands




BICC Bicon CW85K Cable Glands - Gland Kit Prysmian KA419-64

  • Min Cable Dia 68.0mm
  • Max Cable Dia 13.2mm
  • Gland Entry Thread M85 x 2mm
  • Gland Entry Thread Length 20mm

CW85K BICON Brass Cable Gland Kits are suitable for glanding and terminating steel wire armoured (SWA) cables both indoor and outdoor. Prysmian CW cable glands are rated up to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

CW Brass Cable Glands
CW85K Prysmian Cable Gland Kit List -  Prysmian KA419-64

  • Brass cable gland to BS6121-1 with M85 entry thread
  • Brass earth tag provides earth continuity between gland and equipment
  • Brass gland locknut
  • PVC shroud provides enhanced ingress protection
  • 1 x CW85K Prysmian brass cable glands per kit

BICC Bicon CW85K Cable Glands

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Location: Outdoor  (For outdoor termination of cables see BW85 Cable Gland)
  • Order Code: KA419-64 (CW85)
  • Type Of Cable Termination: SWA Armoured Cables
  • Cable Gland Material: Brass
  • Cable Gland Size: CW85
  • Quantity Per Kit: 1 Gland
  • Under Armour Max ∅ (A): 74mm
  • Cable Diameter (B): 68-88.0mm
  • Armour Wire ∅: 3.15mm
  • Entry Thread (D) : M85 x 2.0
  • Thread Length (E) : 20mm
  • Protrusion Length (F): 110mm
  • Hexagon A/F (G): 115mm
  • Hexagon A/C (H): 126mm
  • Order Code: Prysmian Bicon KA419-64

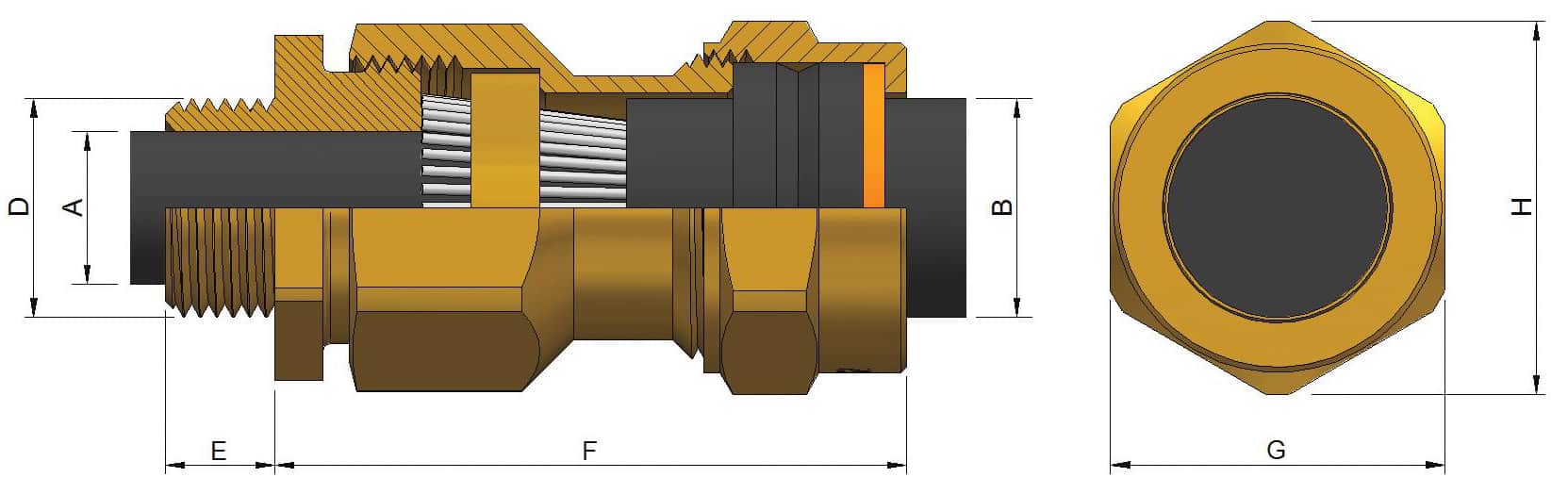

CW Brass Cable Glands - Dimensions



Prysmian CW85K KA419-64 Brass Cable Gland Kit


CW85K Cable Gland Kit Application : Prysmian CW85K (M85) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. CW85K brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF CW cable glands are available.
