BICC Bicon CW20SK Brass Cable Gland Kit (Prysmian KA419-52) 8.0-15.8mm

Prysmian CW20SkCW Cable Glands

BICC Bicon Cable Gland CW20SK

Bicon  Prysmian KA419-52

Industrial Cable Glands




BICC Bicon CW20SK Cable Glands - Gland Kit Prysmian KA419-52

  • Min Cable Dia 8.0mm
  • Max Cable Dia 15.8mm
  • Gland Entry Thread M20 x 1.5mm
  • Gland Entry Thread Length 10mm

CW20SK BICON Brass Cable Gland Kits are suitable for glanding and terminating steel wire armoured (SWA) cables both indoor and outdoor. Prysmian CW cable glands are rated up to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

CW Brass Cable Glands

CW20SK Prysmian Cable Gland Kit List -  Prysmian KA419-52

  • Brass cable gland to BS6121-1 with M20 entry thread
  • Brass earth tag provides earth continuity between gland and equipment
  • Brass gland locknut
  • PVC shroud provides enhanced ingress protection
  • 2 x CW20SK Prysmian brass cable glands per kit

BICC Bicon CW20SK Cable Glands

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Location: Outdoor (For indoor termination of cables see BW20S Cable Gland)
  • Order Code: KA419-52 (CW20S)
  • Type Of Cable Termination: SWA Armoured Cables
  • Cable Gland Material: Brass
  • Cable Gland Size: CW20S
  • Quantity Per Kit: 2 Glands
  • Under Armour Max ∅ (A): 11.6mm
  • Cable Diameter (B): 8.0-15.8mm
  • Armour Wire ∅: 0.9mm
  • Entry Thread (D) : M20 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 46mm
  • Hexagon A/F (G): 25.7mm
  • Hexagon A/C (H): 29.2mm
  • Order Code: Prysmian Bicon KA419-52
  • NPT Version: Prysmian Bicon KA419NP-10V
  • Cable Gland Size: CW20S
  • Quantity Per Kit: 1 Gland
  • Under Armour Max ∅ (A): 11.6mm
  • Cable Diameter (B): 8.0-15.8mm
  • Armour Wire ∅: 1.25mm
  • Entry Thread (D) : 1″ NPT
  • Thread Length (E) : 17.5mm
  • Protrusion Length (F): 46mm
  • Hexagon A/F (G): 36.0mm
  • Hexagon A/C (H): 40.0mm

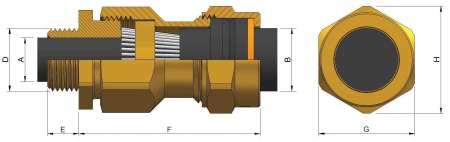

CW Brass Cable Glands - Dimensions

Prysmian CW20SK KA419-52 Brass Cable Gland Kit


CW20SK Cable Gland Kit Application : Prysmian CW20SK (M20) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. CW20SK brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF CW cable glands are available.


Adobe CW20SK Brass Cable Gland Kit, 8.0-15.8mm
