BICC Bicon CW50SK Brass Cable Gland Kit (Prysmian KA419-58) 38.0-46.2mm

CW Cable Glands

BICC Bicon Cable Gland CW50SK

  Prysmian KA419-58

Industrial Cable Glands




BICC Bicon CW50SK Cable Glands - Gland Kit Prysmian KA419-58

• Min Cable Dia 38.0mm
• Max Cable Dia 46.2mm
• Gland Entry Thread M50 x 1.5mm
• Gland Entry Thread Length 15mm

CW250SK BICON Brass Cable Gland Kits are suitable for glanding and terminating steel wire armoured (SWA) cables both indoor and outdoor. Prysmian CW cable glands are rated up to IP66 with use of suitable sealing washer or thread sealant at cable gland interface.

CW50SK Prysmian Cable Gland Kit List -  Prysmian KA419-58

• Brass cable gland to BS6121-1 with M50 entry thread
• Brass earth tag provides earth continuity between gland and equipment
• Brass gland locknut
• PVC shroud provides enhanced ingress protection
• 1 x CW50SK Prysmian brass cable glands per kit

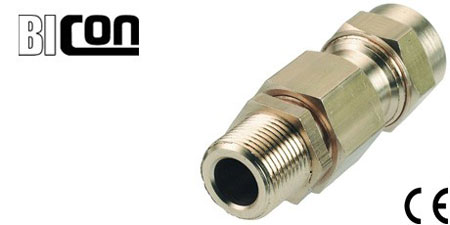

BICC Bicon CW50SK Cable Glands

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Location: Outdoor
• Order Code: KA419-58 (CW50S)
• Type Of Cable Termination: SWA Armoured Cables
• Cable Gland Material: Brass
• Cable Gland Size: CW50S
• Quantity Per Kit: 1 Gland

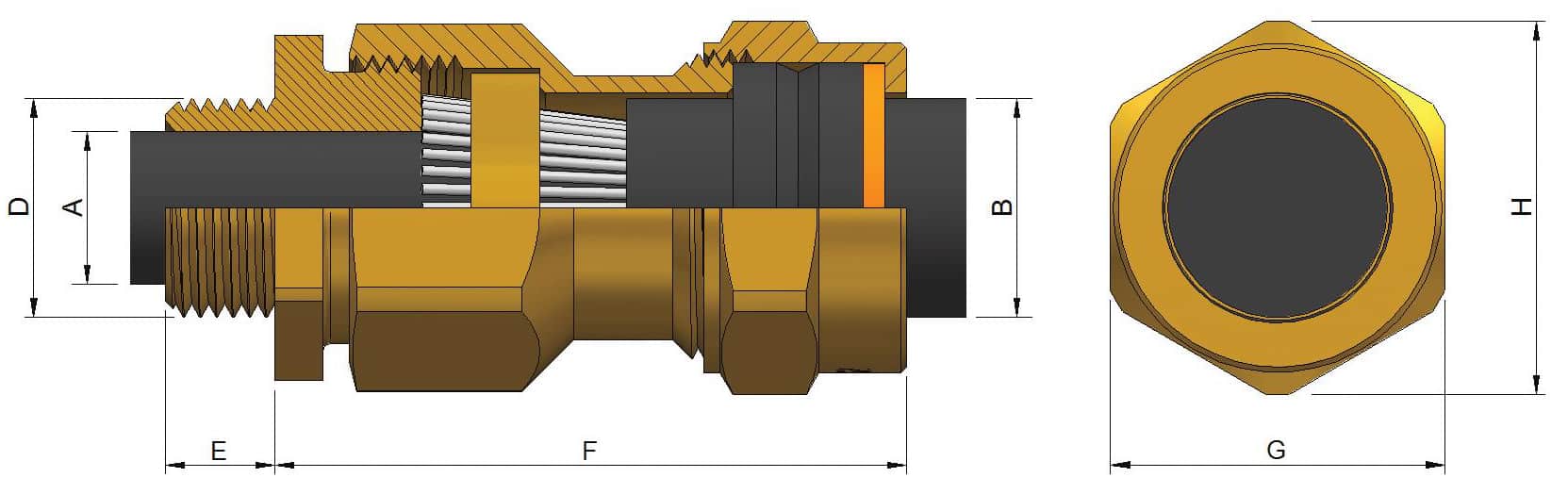

• Under Armour Max ∅ (A): 38.1mm
• Cable Diameter (B): 38.0-46.2mm
• Armour Wire ∅: 2.0/2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 65.5mm
• Hexagon A/C (H): 72.1mm
• Order Code: Prysmian Bicon KA419-58

CW50SK Cable Gland Kit Application : Prysmian CW50SK (M20) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. CW50SK brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF CW cable glands are available.


CW50SK Brass Cable Gland Kit, 38.0-46.2mm
