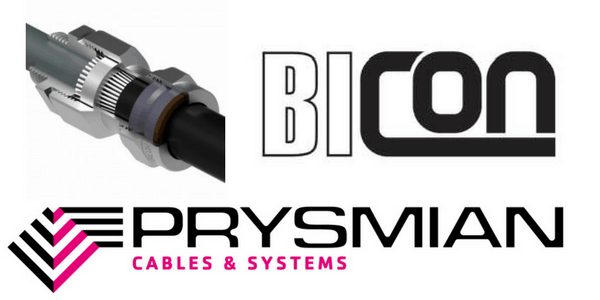

Prysmian CW LSF Aluminium Cable Glands



Prysmian Bicon CW cable glands are low smoke zero halogen cable glands for use with LS0H aluminium wire armoured cables and are LUL approved industrial cable glands.

CW Aluminium Cable Glands

CW cable gland kits are used for galvanised steel single wire armour plastic or rubber sheathed cables in dry, dust free and non-hazardous areas – the CW gland kit includes:

  • CW-AL Cable Gland
  • Aluminium Earth Tag
  • Aluminium Locknut
  • LSOH Low Smoke Zero Halogen Shroud (2 per kit up to and including 25mm gland size)

Prysmian CW LSF aluminium cable glands are used to terminate BS6724 single core XLPE insulated cables with aluminium wire armour (AWA) in both indoor and outdoor applications with IP66 rating - CW LSF aluminium cable gland kits include locknuts, earth tag and LSF shroud.

CW LSF Aluminium Cable Glands - Technical Specification

Prysmian Bicon Reference Size Cable Dimensions (mm) CW Cable Gland Dimensions (mm)
Cable Diameter Ø (B) mm) Entry Thread (D) Thread Length (E) Length (F) Hexagon
Min Max A/F (G) A/C (H)
432LSF-52 20S 8.0 15.8 M20×1.5 10 46 25.7 29.2
432LSF-53 20 11.7 20.8 M20×1.5 10 46 30.5 34
432LSF-55 25 17.0 27.2 M25×1.5 10 51 37.6 42.2
432LSF-56 32 23.5 33.5 M32×1.5 10 56 47.3 53.6
432LSF-57 40 29.0 39.9 M40×1.5 15 59 56.4 61.5
432LSF-58 50S 38.0 46.2 M50×1.5 15 64 65.5 72.1
432LSF-59 50 39.5 52.6 M50×1.5 15 64 70.1 77.2
432LSF-61 63 51.3 65.3 M63×1.5 15 67 80 87.4
432LSF-63 75 62.5 78.0 M75×1.5 15 76 98.8 109.2

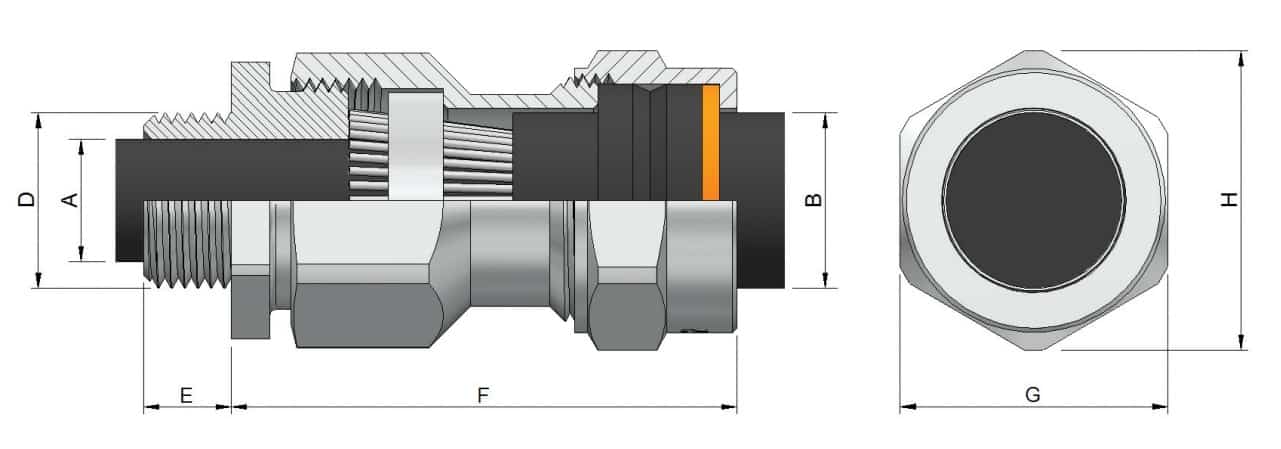

CW LSF Aluminium Cable Glands - Dimensions

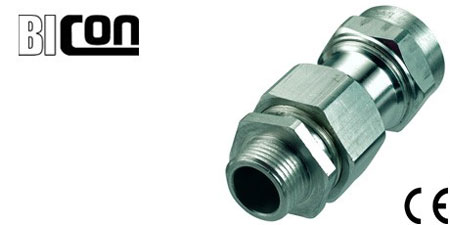

Prysmian CW LSF Aluminium Cable Gland Kits

Prysmian CW aluminium cable gland kits c/w aluminium locknut, aluminium earth tag and PVC shroud.




Adobe CW Aluminium Cable Glands LSF BICON CW20 - 11.7-20.8mm Dia - 432LSF53

Adobe CW Aluminium Cable Glands LSF BICON CW25 - 17.0-27.2mm Dia - 432LSF55

Adobe CW Aluminium Cable Glands LSF BICON CW32 - 23.5-33.5mm Dia - 432LSF56

Adobe CW Aluminium Cable Glands LSF BICON CW40 - 29-39.9mm Dia - 432LSF57

Adobe CW Aluminium Cable Glands LSF BICON CW50S - 38-46.2mm Dia - 432LSF58

Adobe CW Aluminium Cable Glands LSF BICON CW50 - 39.5-52.6mm Dia - 432LSF59

Adobe CW Aluminium Cable Glands LSF BICON CW63 - 51.3-65.3mm Dia - 432LSF61

Adobe CW Aluminium Cable Glands LSF BICON CW75 - 62.5-78mm Dia - 432LSF63
