Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF63

CW75 BICON Cable Gland Pack - 432LSF63

CW75 Aluminium BICON Cable Gland Suits 62.5-78.0mm Cable Diameters

  • Gland Entry Thread M75 x 1.5mm
  • Gland Entry Thread Length 15mm

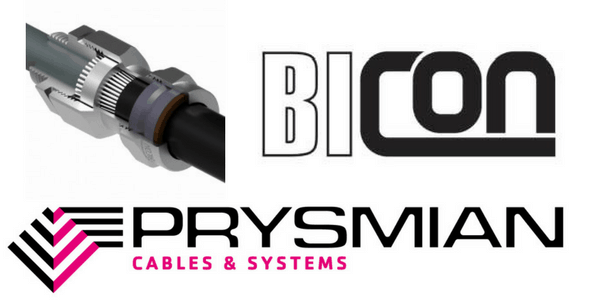

CW LSF Aluminium Cable Glands

Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

Aluminium Cable Gland Kit - BICON 432LSF63

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Aluminium
  • Cable Gland Size: CW75
  • Quantity Per Kit: 1 Cable Gland
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 67.9mm Maximum
  • Overall Cable Diameter (B): 62.5mm Minimum
  • Overall Cable Diameter (B): 78.0mm Maximum
  • Armour Wire Diameter: 2.5mm
  • Entry Thread (D) : M75 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 76mm
  • Hexagon A/F (G): 98.8mm
  • Hexagon A/C (H): 109.2mm
  • Order Code: CW75 432LSF-63
  • Industrial Application Also: Prysmian CW75 Cable Gland KA22-63

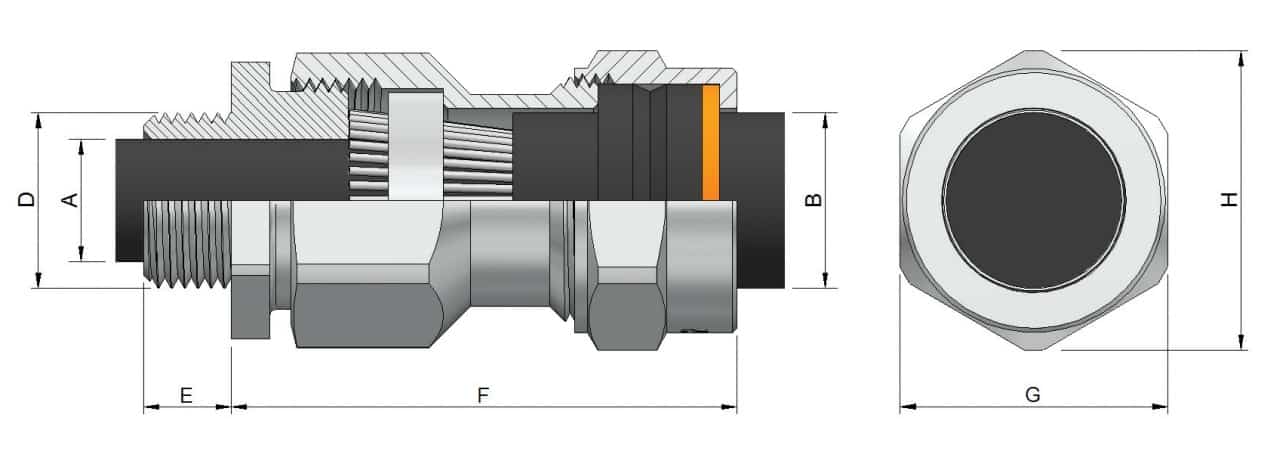

CW LSF Aluminium Cable Glands - Dimensions

Prysmian CW75 432LSF63 Aluminium Cable Gland Kit
