BICC Bicon CW63 432LSF61 Prysmian BICON Aluminium Cable Glands

Prysmian CW63 432LSF Aluminium GlandCW Aluminium Cable Glands - LSF

LSF BICC BICON Gland Kit CW63

LSFPrysmian 432LSF61

Low Smoke Zero Halogen Cable Glands

CW20 432LSF53 Cable Gland







Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF61

CW63 BICON Cable Gland Pack - 432LSF61

CW63 Aluminium BICON Cable Gland Suits 51.3-65.3mm Cable Diameters

  • Gland Entry Thread M63 x 1.5mm
  • Gland Entry Thread Length 15mm

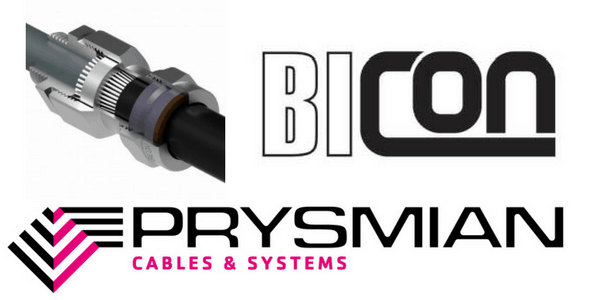

CW LSF Aluminium Cable Glands

Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

Aluminium Cable Gland Kit - BICON 432LSF61

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Aluminium
  • Cable Gland Size: CW63
  • Quantity Per Kit: 1 Cable Gland
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 55.9mm Maximum
  • Overall Cable Diameter (B): 51.3mm Minimum
  • Overall Cable Diameter (B): 65.3mm Maximum
  • Armour Wire Diameter: 2.5mm
  • Entry Thread (D) : M63 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 67mm
  • Hexagon A/F (G): 80mm
  • Hexagon A/C (H): 87.4mm
  • Order Code: CW63 432LSF-61
  • Industrial Application Also: Prysmian CW63 Cable Gland KA22-61

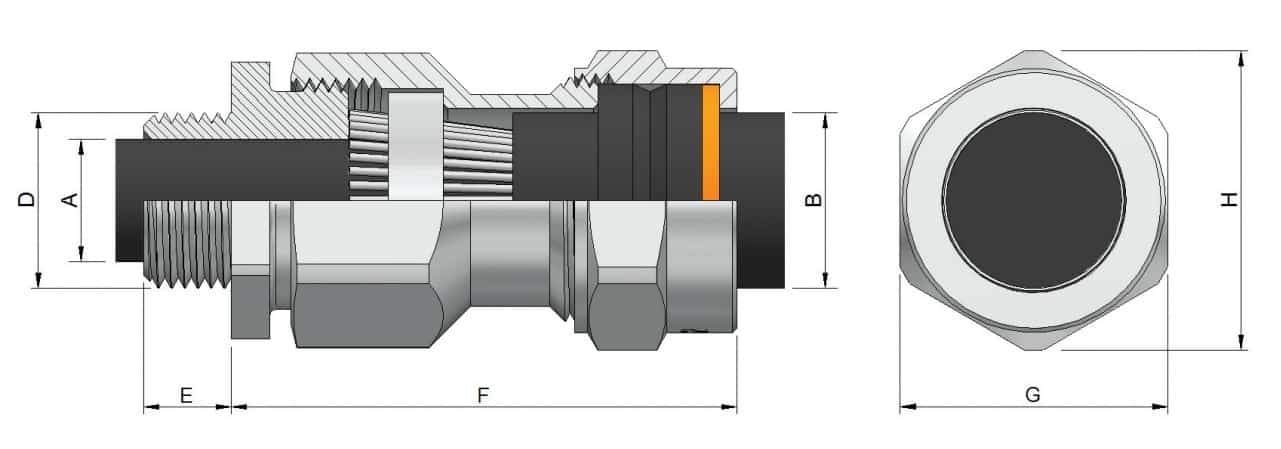

CW LSF Aluminium Cable Glands - Dimensions

Prysmian CW63 432LSF61 Aluminium Cable Gland Kit
