BICC Bicon CW50 432LSF59 Prysmian BICON Aluminium Cable Glands

CW Aluminium Cable Glands - LSF

LSF BICC BICON Gland Kit CW50

Prysmian 432LSF59

Low Smoke Zero Halogen Cable Glands

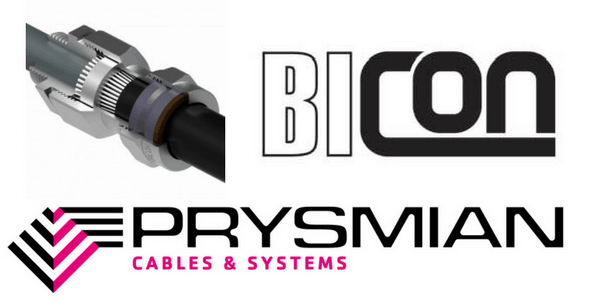

Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF59

CW50 BICON Cable Gland Pack - 432LSF59

CW50 Aluminium BICON Cable Gland Suits 39.5-52.6mm Cable Diameters

• Gland Entry Thread M50 x 1.5mm
• Gland Entry Thread Length 15mm


Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

Aluminium Cable Gland Kit - BICON 432LSF59

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Material: Aluminium
• Cable Gland Size: CW50
• Quantity Per Kit: 1 Cable Gland
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

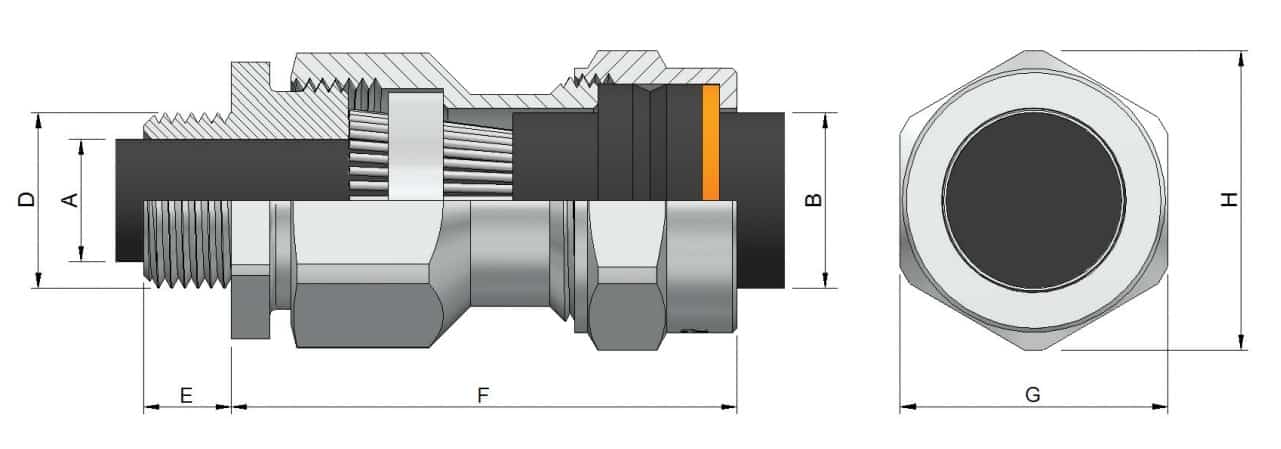

• Under Armour Cable Diameter (A): 44.0mm Maximum
• Overall Cable Diameter (B): 39.5mm Minimum
• Overall Cable Diameter (B): 52.6mm Maximum
• Armour Wire Diameter: 20./2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 70.1mm
• Hexagon A/C (H): 77.2mm
• Order Code: CW50 432LSF-59
• Industrial Application Also: Prysmian CW50 Cable Gland KA22-59



CW50 432LSF59 Prysmian BICON Aluminium Cable Glands
