CW20 432LSF53 Cable Gland







Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF56

CW32 BICON Cable Gland Pack - 432LSF56

CW32 Aluminium BICON Cable Gland Suits 23.5-33.5mm Cable Diameters

  • Gland Entry Thread M32 x 1.5mm
  • Gland Entry Thread Length 10mm

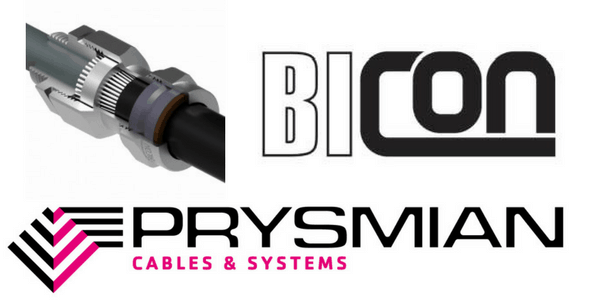

CW LSF Aluminium Cable Glands

Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

Aluminium Cable Gland Kit - BICON 432LSF56

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Aluminium
  • Cable Gland Size: CW32
  • Quantity Per Kit: 1 Cable Gland
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 26.2mm Maximum
  • Overall Cable Diameter (B): 23.5mm Minimum
  • Overall Cable Diameter (B): 33.5mm Maximum
  • Armour Wire Diameter: 1.6/2.0mm
  • Entry Thread (D) : M32 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 56mm
  • Hexagon A/F (G): 47.3mm
  • Hexagon A/C (H): 53.6mm
  • Order Code: CW32 432LSF-56
  • Industrial Application Also: Prysmian CW32 Cable Gland KA22-56

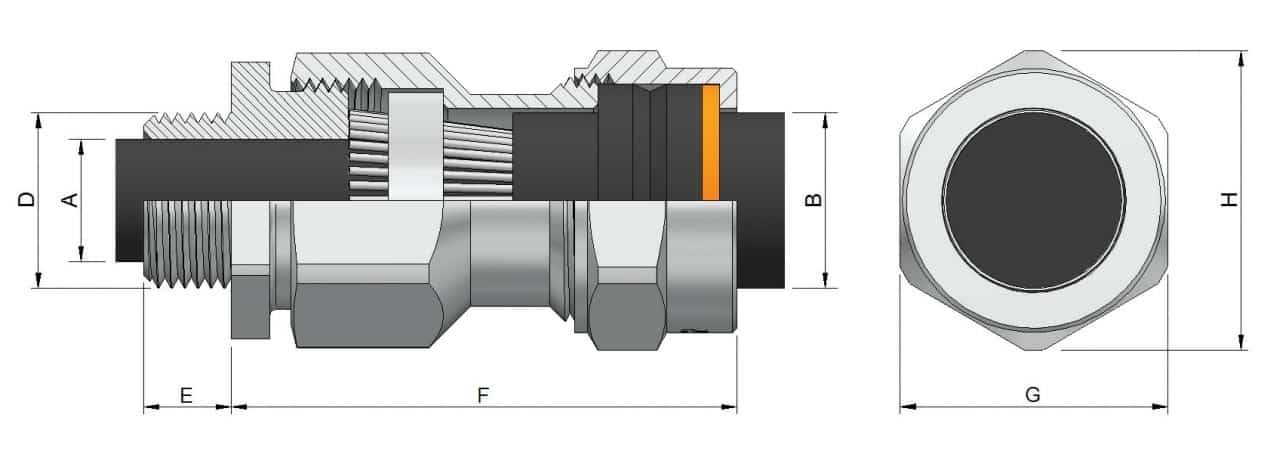

CW LSF Aluminium Cable Glands - Dimensions

Prysmian CW32 432LSF56 Aluminium Cable Gland Kit
