BICC Bicon CW20 432LSF53 Prysmian BICON Aluminium Cable Glands

Prysmian CW20 432LSF Aluminium GlandCW Aluminium Cable Glands - LSF

LSF BICC BICON Gland Kit CW20

LSFPrysmian 432LSF53

Low Smoke Zero Halogen Cable Glands

CW20 432LSF53 Cable Gland







Prysmian BICC BICON Aluminium Cable Gland Kit - BICON 432LSF53

CW20 BICON Cable Gland Pack - 432LSF53

CW20 Aluminium BICON Cable Gland Suits 11.7-20.8mm Cable Diameters

  • Gland Entry Thread M20 x 1.5mm
  • Gland Entry Thread Length 10mm

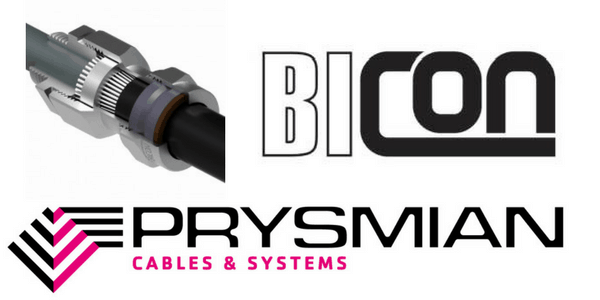

CW LSF Aluminium Cable Glands

Prysmian BICON LSF Low Smoke and Fume (Zero Halogen) cable gland terminations suit LV XLPE AWA (aluminium wire armoured) single core power cables to BS6724 and BS7835. Prysmian BICON cable glands are rated to IP66 with use of suitable washer or thread sealant. Standard industrial aluminium cable glands are also available for terminating 600/1000 volt BS5467 XLPE PVC sheathed power cables.

Aluminium Cable Gland Kit - BICON 432LSF53

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Material: Aluminium
  • Cable Gland Size: CW20
  • Quantity Per Kit: 2 Cable Glands
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 13.9mm Maximum
  • Overall Cable Diameter (B): 11.7mm Minimum
  • Overall Cable Diameter (B): 20.8mm Maximum
  • Armour Wire Diameter: 0.9/1.25mm
  • Entry Thread (D) : M20 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 46mm
  • Hexagon A/F (G): 30.5mm
  • Hexagon A/C (H): 34mm
  • Order Code: CW20 432LSF-53
  • Industrial Application Also: Prysmian CW20 Cable Gland KA22-53

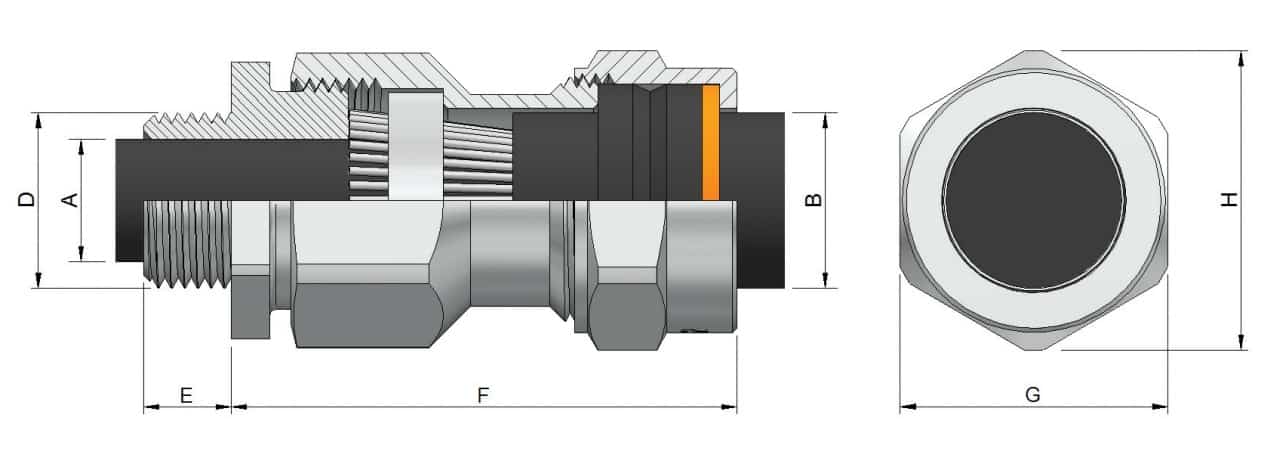

CW LSF Aluminium Cable Glands - Dimensions

Prysmian CW20 432LSF53 Aluminium Cable Gland Kit
