BW Brass Cable Glands - Prysmian BICC BICON

Prysmian Cable Glands

BICC BICON KA410

 BW Cable Glands Indoor





Prysmian BICC BICON BW brass cable glands (KA410) are used to gland or terminate steel wire armoured cables in indoor cable applications.

Prysmian BW brass cable gland kits include glands, earth tag, brass locknut and PVC shroud - available in LSF for weatherpoof and waterproof low smoke and fume cable terminations.

BW brass cable gland kits are used for galvanised steel single wire armour plastic or rubber sheathed cables in dry, dust free and non-hazardous areas

Prysmian BW brass cable glands are used to terminate XLPE and PVC insulated cables with steel wire armour (SWA) in indoor applications, 600/1000 volts, including BS5467, BS6622 and BS5308 cable.

Prysmian cable glands provide mechanical cable retention and electrical continuity via cable wire armour locking mechanism.

• BS5467 Cable - Mains Power Cable XLPE SWA BS EN 60332



BW Prysmian Cable Gland Kit List

• BW brass cable gland to BS6121-1
• BW brass earth tag provides earth continuity between gland and equipment
• BW brass gland locknut
• PVC shroud provides enhanced ingress protection
• 2 x Prysmian brass cable glands per kit up to and including 25mm

Prysmian Bicon BW Brass Cable Gland Kits - Technical Specification

Prysmian Bicon Reference	Size	Cable Dimensions (mm)		BW Cable Gland Dimensions (mm)
		Under Armour ∅ (A)	Armour Wire ∅	Entry Thread (D)	Thread Length (E)	Protrusion Length (F)	Hexagon
		Max					A/F (G)	A/C (H)
KA410-52	20S	11.6	0.9	M20 x 1.5	10	24	22	24.9
KA410-53	20	13.9	0.9/1.25	M20 x 1.5	10	25	27	30.5
KA410-55	25	19.9	1.25/1.6	M25 x 1.5	10	26	32.9	36.8
KA410-56	32	26.2	1.6/2.0	M32 x 1.5	10	28	42.4	47.8
KA410-57	40	32.1	1.6/2.0	M40 x 1.5	15	25	50	57
KA410-59	50	44.0	2.0/2.5	M50 x 1.5	15	36	70.1	77.2
KA410-61	63	55.9	2.5	M63 x 1.5	15	30	80	87.4
KA410-62	75S	61.9	2.5	M75 x 1.5	15	40	85	95
KA410-63	75	67.9	2.5	M75 x 1.5	15	40	98.8	109.2
KA410-64	85	74.5	3.15	M85 x 2.0	20	43	115	126

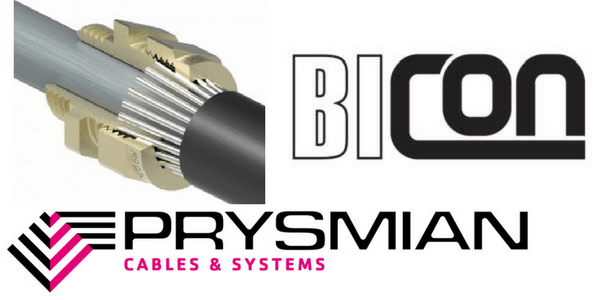

Pictured : Prysmian BICC BICON BW Cable Gland
