BICC Bicon BW63 Brass Cable Gland Kit (Prysmian KA410-61) 55.9-65.3mm

Prysmian BW63BW Cable Glands

BICC Bicon Cable Gland BW63

BiconPrysmian KA410-61

Industrial Cable Glands




BICC Bicon BW63 Cable Glands - Gland Kit Prysmian KA410-61


  • Max Under Armour Cable Dia 55.9mm
  • Gland Entry Thread M63 x 1.5mm
  • Gland Entry Thread Length 15mm

BW63 Cable Glands

BICC Bicon BW63 Prysmian Cable Gland Kit List - KA410-61

  • Brass cable gland to BS6121-1 with M63 entry thread
  • Brass earth tag provides earth continuity between gland and equipment
  • Brass gland locknut
  • PVC shroud provides enhanced ingress protection
  • 1 x BW63 Prysmian brass cable glands per kit

BW63 Cable Glands - Technical Specification

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Location: Indoor (For outdoor termination of cables see CW63 Cable Gland)
  • Order Code: KA410-61 (BW63)
  • Type Of Cable Termination: SWA Armoured Cables
  • Cable Gland Material: Brass
  • Cable Gland Size: BW63
  • Quantity Per Kit: 1 Gland
  • Under Armour Cable Diameter (A): 55.9mm Maximum
  • Armour Wire Diameter: 2.5mm
  • Entry Thread (D) : M63 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 30mm
  • Hexagon A/F (G): 80mm
  • Hexagon A/C (H): 87.4mm

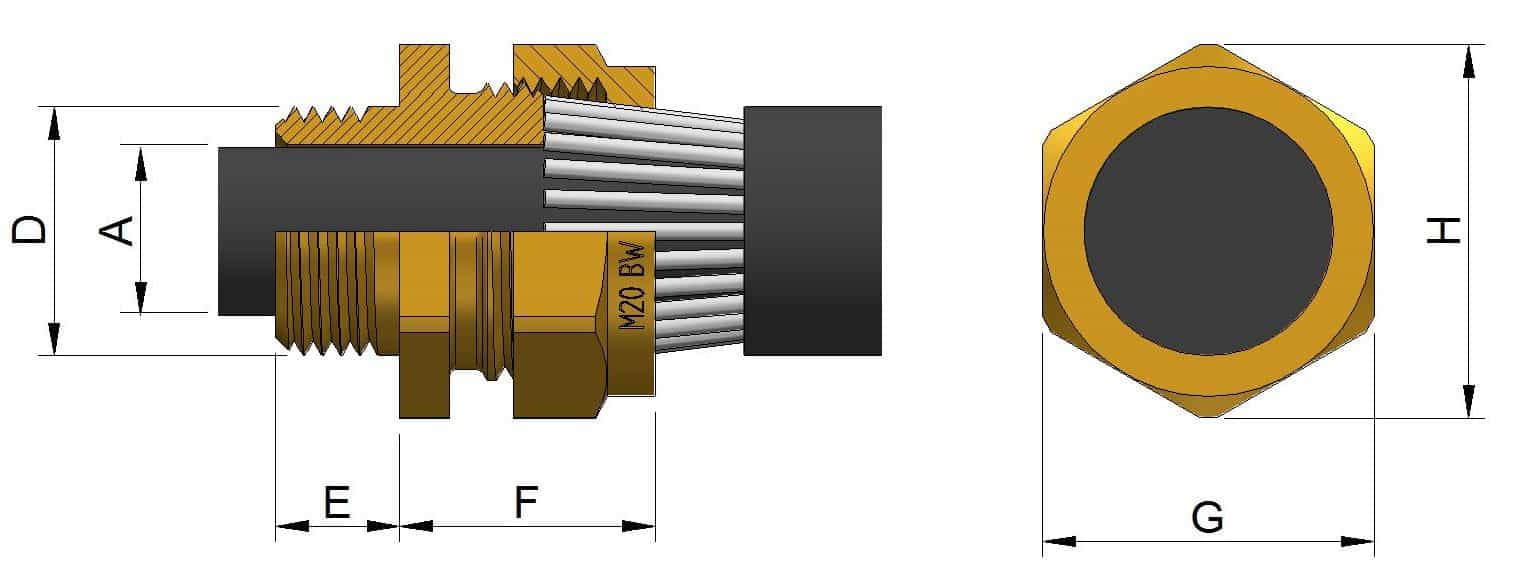

BW Brass Cable Glands - Dimensions

Prysmian BW63 Brass Cable Gland Kit


BW63 Cable Gland Kit Application : Prysmian BW63 (M63) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. BW20 brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF BW cable glands are available.

BW63 cable glands for indoor cable termination of XLPE SWA cables in dry indoor environments - Prysmian BW glands are to BS6121 Part 1.


T&D distribute the complete range of Prysmian Cable Glands including BW, CW, A2, E1FW, E2W, barrier, hazardous area (ATEX) and high voltage cable glands.
