BICC Bicon BW32 Brass Cable Gland Kit (Prysmian KA410-56) 26.2-33.5mm

Prysmian BW32BW Cable Glands

BICC Bicon Cable Gland BW32

BiconPrysmian KA410-56

Industrial Cable Glands




BICC Bicon BW32 Cable Glands - Gland Kit Prysmian KA410-56


  • Min Under Armour Cable Dia 11.6mm
  • Gland Entry Thread M20 x 1.5mm
  • Gland Entry Thread Length 10mm

BW32 Cable Glands

BICC Bicon BW32 Prysmian Cable Gland Kit List - KA410-56

  • Brass cable gland to BS6121-1 with M32 entry thread
  • Brass earth tag provides earth continuity between gland and equipment
  • Brass gland locknut
  • PVC shroud provides enhanced ingress protection
  • 1 x BW32 Prysmian brass cable glands per kit

BW32 Cable Glands - Technical Specification

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Location: Indoor (For outdoor termination of cables see CW32 Cable Gland)
  • Order Code: KA419-56 (BW32)
  • Type Of Cable Termination: SWA Armoured Cables
  • Cable Gland Material: Brass
  • Cable Gland Size: BW32
  • Quantity Per Kit: 1 Cable Gland
  • Under Armour Cable Diameter (A): 26.2mm Maximum
  • Armour Wire Diameter: 1.6/2.0mm
  • Entry Thread (D) : M32 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 28mm
  • Hexagon A/F (G): 42.4mm
  • Hexagon A/C (H): 47.8mm

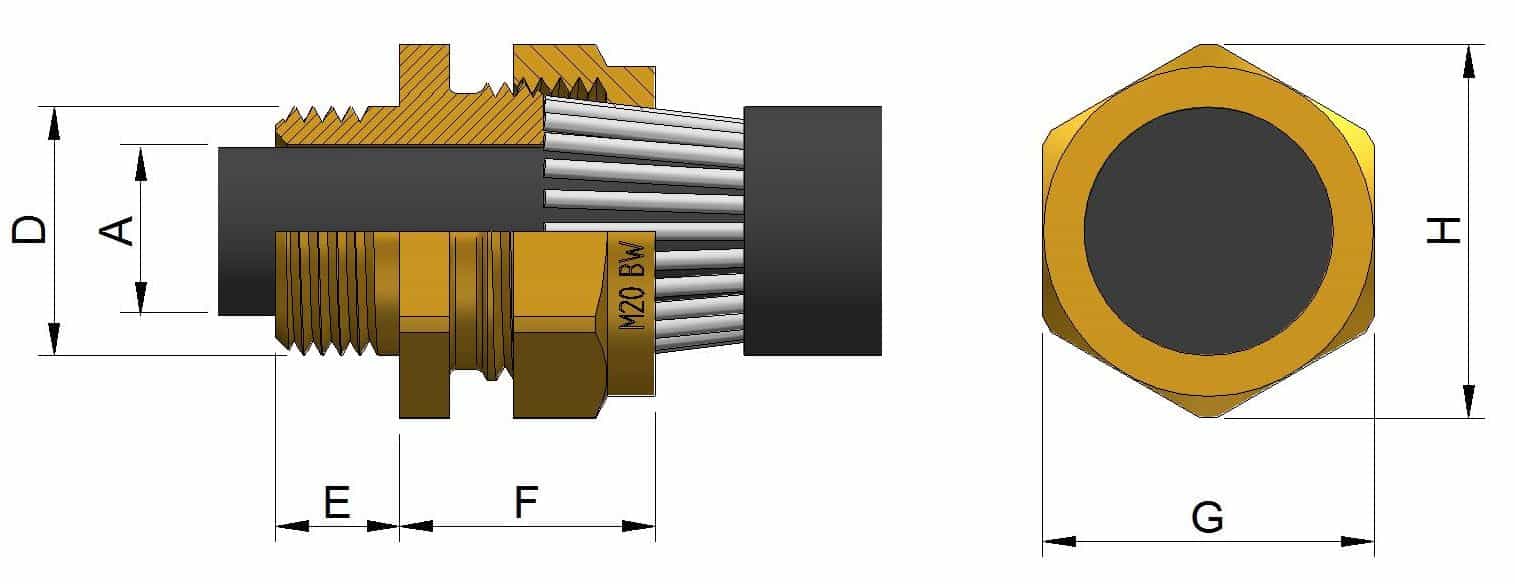

BW Brass Cable Glands - Dimensions

Prysmian BW32 Brass Cable Gland Kit


BW32 Cable Gland Kit Application : Prysmian BW32 (M32) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. BW20 brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF BW cable glands are available.

BW32 cable glands for indoor cable termination of XLPE SWA cables in dry indoor environments - Prysmian BW glands are to BS6121 Part 1.

T&D distribute the complete range of Prysmian Cable Glands including BW, CW, A2, E1FW, E2W, barrier, hazardous area (ATEX) and high voltage cable glands.
