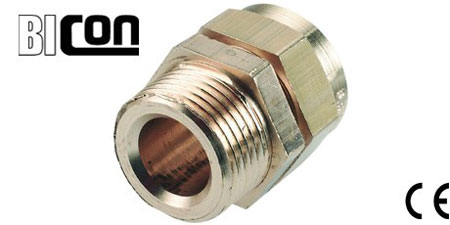

BICC Bicon BW25 Brass Cable Gland Kit (Prysmian KA410-55) 19.9-27.2mm

BW Cable Glands

BICC Bicon Cable Gland BW25

Prysmian KA410-55

Industrial Cable Glands



BICC Bicon BW25 Cable Glands - Gland Kit Prysmian KA410-55

• Max Under Armour Cable Dia 19.9mm
• Gland Entry Thread M25 x 1.5mm
• Gland Entry Thread Length 10mm

BICC Bicon BW25 Prysmian Cable Gland Kit List - KA410-55

• Brass cable gland to BS6121-1 with M20 entry thread
• Brass earth tag provides earth continuity between gland and equipment
• Brass gland locknut
• PVC shroud provides enhanced ingress protection
• 2 x BW25 Prysmian brass cable glands per kit

BW25 Cable Glands - Technical Specification

• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Location: Indoor (For outdoor termination of cables see CW25 Cable Gland)
• Order Code: KA410-55 (BW25)
• Type Of Cable Termination: SWA Armoured Cables
• Cable Gland Material: Brass
• Cable Gland Size: BW25
• Quantity Per Kit: 2 Cable Glands

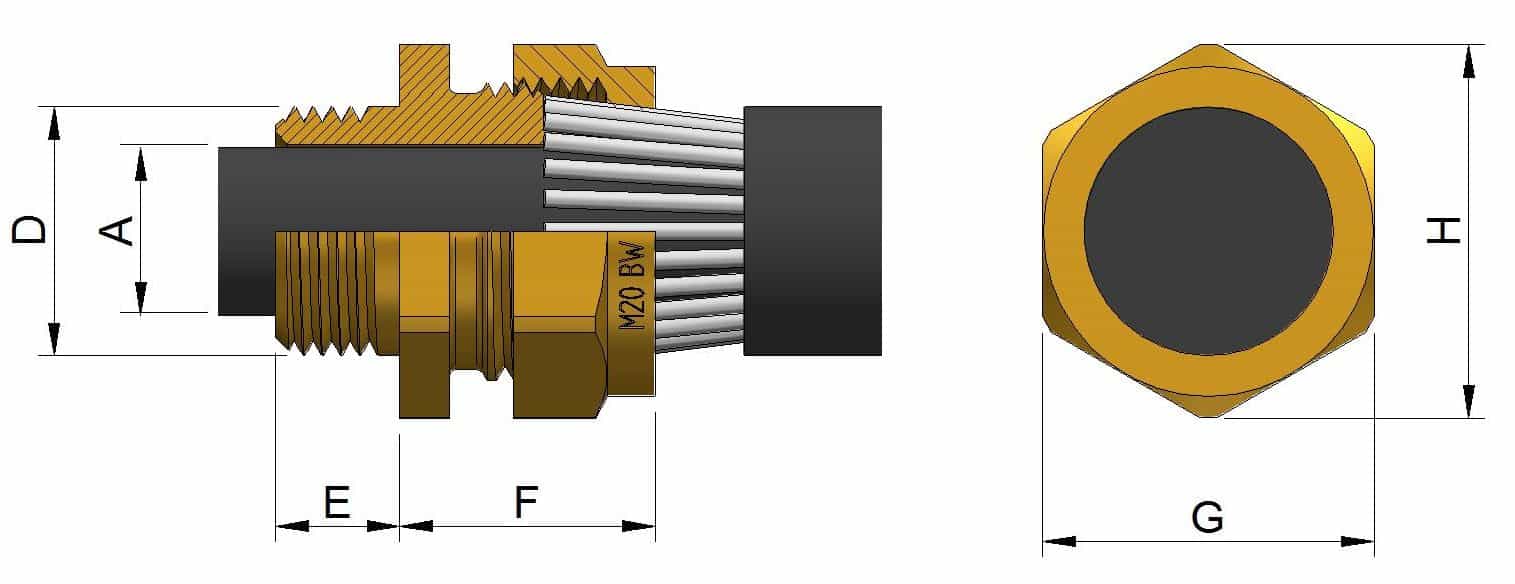

• Under Armour Cable Diameter (A): 19.9mm Maximum
• Armour Wire Diameter: 1.25/1.6mm
• Entry Thread (D) : M25 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 26mm
• Hexagon A/F (G): 32.9mm
• Hexagon A/C (H): 36.8mm

BW25 Cable Gland Kit Application : Prysmian BW25 (M25) brass cable gland kits terminate low voltage XLPE insulated, steel wire armoured (SWA), multi-core cables. BW20 brass cable glands provide mechanical cable retention and electrical continuity via steel wire armour termination.

LSF BW cable glands are available.

BW20S cable glands for indoor cable termination of XLPE SWA cables in dry indoor environments - Prysmian BW glands are to BS6121 Part 1.

T&D distribute the complete range of Prysmian Cable Glands including BW, CW, A2, E1FW, E2W, barrier, hazardous area (ATEX) and high voltage cable glands.
