Wolf Safety TR & TS ATEX Torches For Hazardous Areas Zone 1 Zone 2 Zone 21 & Zone 22

By Chris Dodds on 22nd February, 2013

Follow @ThorneanDerrick

Hazardous Area Lighting

Wolf ATEX Safety Torch - TR & TS



Wolf ATEX Safety Torch is a portable light available with a straight or right-angle body style. The ATEX torch is simple to use and uses vacuum, halogen or xenon bulbs.

Wolf safety torches are CE marked to the ATEX directive and IECEx certified for safe use in Zones 1 and 2 potentially explosive gas, vapour and mist atmosphere, where a T6 or T4 class permits, and Zones 21 and 22 dust atmospheres, with certified maximum surface temperatures of 65°C or 95°C.

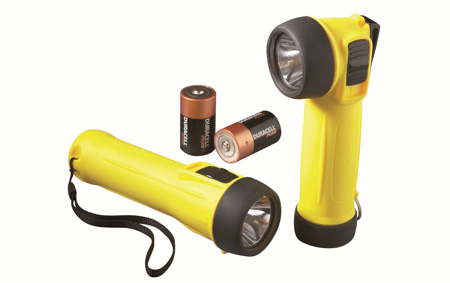

Pictured: Wolf ATEX Safety Torch

Wolf safety ATEX torch is compact with a high-grip ergonomic form and can easily be used one-handed. The robust design of the ATEX torches offers high strength and impact resistance, even at sub zero temperatures. The rubber lens ring and end cap provides shock protection and the polycrbonate lens is also scratch and chemical resistant.

Wolf ATEX Safety Torches - TS & TR

Product	Description
Wolf TS-26	Straight Torch Body	Vacuum Filament Bulb		Gas Zone: 1 and 2 Dust Zone: 21 and 22
Wolf TR-26	Right Angled Torch Body	Vacuum Filament Bulb		Gas Zone: 1 and 2 Dust Zone: 21 and 22
Wolf TS-24	Straight Torch Body	Xenon Filled Filament Bulb		Gas Zone: 1 and 2 Dust Zone: 21 and 22
Wolf TR-24	Right Angled Torch Body	Xenon Filled Filament Bulb		Gas Zone: 1 and 2 Dust Zone: 21 and 22
Wolf TS-24+	Straight Torch Body	Halogen Filled Filament Bulb	Low Power Indicator	Gas Zone: 1 and 2 Dust Zone: 21 and 22
Wolf TR-24+	Right Angled Torch Body	Halogen Filled Filament Bulb	Low Power Indicator	Gas Zone: 1 and 2 Dust Zone: 21 and 22





Wolf TS & TR ATEX Safety Torch Features

• T6 and T4 models
• Simple, robust design
• Ultimate halogen light output
• High energy alkaline cell certified
• ATEX explosive gas and dust approval
• IECEx Scheme certified
• Low power indicator option
• Ambient Temp. (Gas) -20°C to +40°C/+55°C
• Ambient Temp. (Dust) -20°C to +55°C
• Impact Resistant Thermoplastic, Electrostatic Non-hazardous Enclosure
• Ingress Protection IP67
• Weight (inc. cells) 350g - 490g

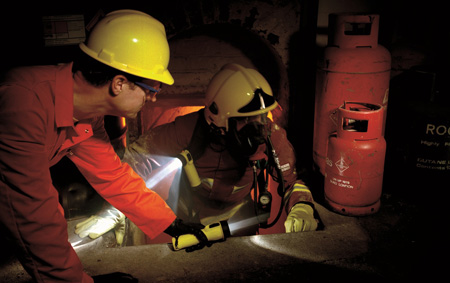

Pictured: Wolf ATEX Safety Torch Application For Hazardous Areas
