Wolf Torches Hazardous Area ATEX Zone 1 & Zone 2

Wolf ATEX Torches - TR & TS Range

ATEX Zone 1 & Zone 2







Wolf's ATEX torches are a reliable and cost effective portable light which is simple to use and is certified for safe use in hazardous area Zones 1, 2, 21 & 22 and potentially explosive atmospheres.Wolf

ATEX Torches are available with a straight (TS) or right angle (TR) body style and vacuum, halogen or xenon bulbs. Wolf's ATEX Torches are available in T4, T4+ and T6 models which all have a compact torch design with a high-grip ergonomic form for easy single-handed switching.

Wolf's torches have a impact resistance enclosure and a shatterproof polycarbonate lens which has a scratch and chemically resistant coating.

T4 models utilise long life halogen or xenon bulbs which are set in a high quality parabolic reflector and provide up to 12 hours of light output.

The T4+ halogen models have a low power warning circuit to indicate and the T6 is ideal for higher T-class Zone 1 & Zone 2 hazardous areas and provides up to 5 hours of light.

T&D are Approved Distributors for the Wolf Lighting including handlamps, torches, headtorches and floodlights.

Pictured: Wolf ATEX Torch

Wolf ATEX Torch

Both the TS and TR models are sealed dust tight and protected from water immersion with an IP67 certified enclosure.

Wolf ATEX Torch - Features & Benefits

  • T6 and T4 models
  • Simple, robust designWolf Safety
  • Ultimate halogen light output
  • High energy alkaline cell certified
  • ATEX explosive gas and dust approvalATEX
  • IECEx Scheme certified
  • Low power indicator option

ATEX Certified Torch
Zones 0, 1, 2, 20, 21 & 22 Hazardous Areas

  • Zone 0, Zone 1 & Zone 2 Gas
  • Zone 20, Zone 21 & Zone 22 Dust
  • See below table for ATEX Certification details including T-Rating, Gas Groups and Zone locations
Wolf ATEX Torch - Product Range
Wolf Product Reference TS-26 TR-26 TS-24 TR-24 TS-24+ TR-24+
Product Description Safety Torch, Primary Cell Powered, Straight or Right-Angle
Straight Right Angle Straight Right Angle Straight + Indicator Right Angle + Indicator
Code ATEX II 2 GD Ex e ib IIC T6 Gb Ex tD A21 IP67 T65ºC Db II 2 GD Ex e ib IIC T4 (Ta = 40/55ºC) Gb Ex tD A21 IP67 T95ºC (Ta = 55ºC) Db
IECEx - Ex e ib I/IIC T4 IP67/Ex tD A21 T95
Type of Protection Increased Safety, Intrinsic Safety
Area of Classification (Gas) Zones 1 and 2, Gas Groups IIA, IIB, IIC
Max Surface Temperature (Gas) T6 T4
Ambient Temperature (Gas) -20ºC to +40ºC -20ºC to +40ºC / +55ºC
Area of Classification (Dust) Zones 21 and 22
Temperature Class (Dust) 65ºC 95ºC
Ambient Temperature (Dust) -20ºC to +40ºC -20ºC to +55ºC
Certificate BAS 02 ATEX 2220X - IECEx TSA 05.0017X
Enclosure Impact Resistant Thermoplastic, Electrostatic Non-Hazardous
Lens Polycarbonate, Impact Resistant with Hard Coat
Beam Type Medium Spot
Light Source Part No TP-406 TP-404 TP-402
Bulb Type Vacuumn Filament Xenon Filled Filament Halogen Filled Filament
Rating 2.4V, 0.5A 2.4V, 0.7A 2.4V, 0.83A
Output 11.4 lm (at non voltage) 16 lm (at nom voltage) 23 lm (at nom voltage)
Life 15 hours 50 hours 30 hours
Spare TP-406 TP-404 TP-404
Power Source Part Number 2 x T-20 (R20) 2 x H-20 (LR20)
Battery Type R20 Primary Cells, to IEC 60086 R20 / LR20 Primary Cells to IEC60086
Volts 2 x 1.5V 2 x 1.5V
Light Duration Up to 5 hours Up to 12 hours Up to 10 hours
Ingress Protection IP67
Weight (Excl. Cells) 150g 190g 150g 190g 150g 190g
Weight (Incl Battery) 350g 390g 450g 490g 450g 490g
NATO Codified Versions

TR-24+MOD: NATO Stock No. 6230-99-259-6285 superseded by ATEX Safety Torch with LED TR-30+MOD. Spares are available for the TR-24+MOD.

TR-24BMOD: Right Angled Torch Body (Xenon Filled Filament Bulb) Black 'Aircrew' Torch Body (Allows the use of coloured filters, masking any light that could leak through the back of the torch) - NATO Stock No: 6230-99-426-4033

TP-290MOD: NVG (Night Vision Goggle) Compatible Filter for TR-24BMOD - NATO Stock No: 5A/6230-99-160-4590

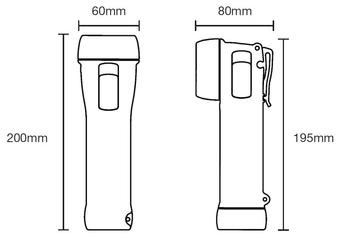

Wolf ATEX Torches - Product Dimensions

Wolf ATEX Torches - Product Dimensions



Pictured: Wolf ATEX Torch for Hazardous Areas Zone 1 & Zone 2

Wolf ATEX Torch for Hazardous Areas Zone 1 & Zone 2
